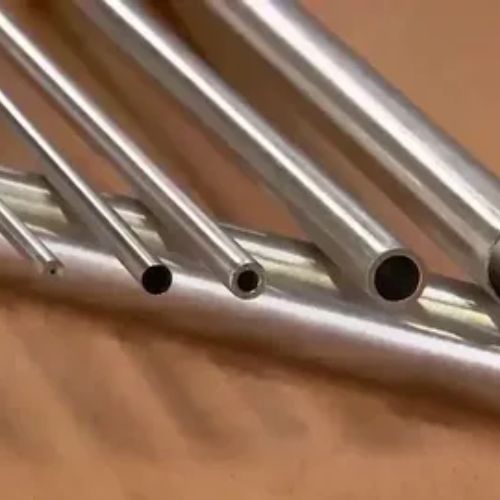

Based in Chennai, India, Vipul Pipes and Tubes is a reputable manufacturer and supplier of Titanium Gr 5 Tubing, providing high-end tubing solutions for demanding and high-performance applications. Titanium Grade 5 (Ti-6Al-4V) tubing is extensively utilised in the chemical, medical, aerospace, and marine industries due to its strength, resistance to corrosion, and lightweight nature. Vipul Pipes and Tubes guarantees that every product satisfies global quality standards while providing exceptional precision and durability. The business provides dependable and specially designed titanium tubing solutions to customers in India and overseas with a dedication to innovation, technical know-how, and client satisfaction.
About 90% titanium, 6% aluminium, and 4% vanadium make up titanium Gr 5 tubing. This alpha-beta alloy has a high strength-to-weight ratio, good fatigue and creep resistance, and outstanding corrosion resistance. The tubing has good ductility and toughness, with a tensile strength of about 895 MPa and a yield strength of about 828 MPa. Even in high-temperature settings, titanium Grade 5 maintains its mechanical qualities and can be heat treated and welded. Because of these qualities, it is perfect for uses that call for resilience to corrosive or harsh environments as well as strength and durability.
Specification : ASTM B861, B338, B388, B862 / ASME SB861, SB338, SB388, SB862
Pipe Range : ½”NB to 24”NB / SCH 10 – SCH XXS
Tubes Range: 1mm OD to 254mm OD / Thickness 0.1 to 20mm.
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Al | Fe | O | Ti | V |
|---|---|---|---|---|
| max | max | max | max | max |
| 6 | 0.25 | 0.2 | 90 | 4 |
| Hardness, Brinell | 334 | 334 | Estimated from Rockwell C. |
|---|---|---|---|
| Hardness, Knoop | 363 | 363 | Estimated from Rockwell C. |
| Hardness, Rockwell C | 36 | 36 | |
| Hardness, Vickers | 349 | 349 | Estimated from Rockwell C. |
| Tensile Strength, Ultimate | 950 MPa | 138000 psi | |
| Tensile Strength, Yield | 880 MPa | 128000 psi | |
| Elongation at Break | 14 % | 14 % | |
| Reduction of Area | 36 % | 36 % | |
| Modulus of Elasticity | 113.8 GPa | 16500 ksi | |
| Compressive Yield Strength | 970 MPa | 141000 psi | |
| Notched Tensile Strength | 1450 MPa | 210000 psi | Kt (stress concentration factor) = 6.7 |
| Ultimate Bearing Strength | 1860 MPa | 270000 psi | e/D = 2 |
| Bearing Yield Strength | 1480 MPa | 215000 psi | e/D = 2 |
| Poisson’s Ratio | 0.342 | 0.342 | |
| Charpy Impact | 17 J | 12.5 ft-lb | V-notch |
| Fatigue Strength | 240 MPa | 34800 psi | at 1E+7 cycles. Kt (stress concentration factor) = 3.3 |
| Fatigue Strength | 510 MPa | 74000 psi | Unnotched 10,000,000 Cycles |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
By choosing Titanium Gr 5 Tubing from Vipul Pipes and Tubes, you are assured of superior quality and durability. These tubes provide outstanding corrosion resistance and strength, making them ideal for a wide range of industrial applications. Our dedication to excellent service and dependable delivery ensures customer satisfaction every time. With our expertise in stainless steel products, we deliver top-tier solutions customized to meet your specific requirements.
Vipul Pipes and Tubes, a leading supplier of Titanium Gr 5 Tubing in Chennai, India, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
At Vipul Pipes and Tubes, we provide custom sizes of Titanium Gr 5 Tubing to meet your exact specifications. Our dedicated team is here to offer tailored solutions for all your piping and tubing needs. For more information, feel free to reach out to us at sales@brydonpipesandtubes.co.uk.
Because of its exceptional strength-to-weight ratio and high-temperature performance, titanium Gr 5 tubing is frequently used in jet engines, airframes, and aerospace components. It is appropriate for offshore structures and ship components in the maritime industry because it doesn’t corrode when exposed to seawater. It manages aggressive media in pipelines, condensers, and reactors during chemical processing. Because of its biocompatibility, it is also utilised in surgical instruments and orthopaedic implants, among other medical devices. Its ability to reduce weight without sacrificing strength makes it valuable in the automotive and motorsport industries. In demanding, corrosive, and high-performance settings, titanium Gr 5 tubing provides long-term dependability.
