Home > Super Duplex Steel > Super Duplex Steel Seamless Tubing
High-performance Super Duplex Steel Seamless Tubing is manufactured and supplied by Vipul Pipes and Tubes, a reputable company with headquarters in Chennai, India. Vipul Pipes provides seamless tubing solutions that satisfy the exacting specifications of industries functioning in harsh environments, all while maintaining a dedication to quality and accuracy. Super Duplex Seamless Tubing provides exceptional fatigue performance, strength, and resistance to corrosion. The offshore, marine, chemical, and power industries all make extensive use of Vipul’s products, which are produced in accordance with international standards. Vipul Pipes is a dependable partner in the industrial tubing market, renowned for its prompt delivery, affordable prices, and customer-focused service.
About 24–26% chromium, 6–8% nickel, 3–5% molybdenum, as well as nitrogen and manganese, make up Super Duplex Steel Seamless Tubing. This austenitic-ferritic dual-phase alloy offers remarkable resistance to stress corrosion cracking, pitting, and crevice corrosion. When compared to welded versions, seamless tubing offers greater structural integrity and pressure tolerance. Excellent toughness and weldability are typical mechanical characteristics, along with a tensile strength of up to 800 MPa and a yield strength of about 550 MPa. It is perfect for demanding industrial applications because of its exceptional mechanical and corrosion-resistant qualities.
| Specifications | ASTM A 789 ASME SA 789 |
|---|---|
| Standard | AISI, DIN, EN, GB, JIS, ASTM, ASME Super Duplex 2507 Pipe |
| 2507 Seamless Pipe Outer Diameter | 6.00 mm OD up to 250 mm OD, Sizes up to 12” NB |
| Alloy 2507 Welded Pipe size | 5.0 mm – 1219.2 mm |
| 2507 EFW Pipe size | 5.0 mm – 1219.2 mm |
| Thickness | 0.3mm – 50 mm |

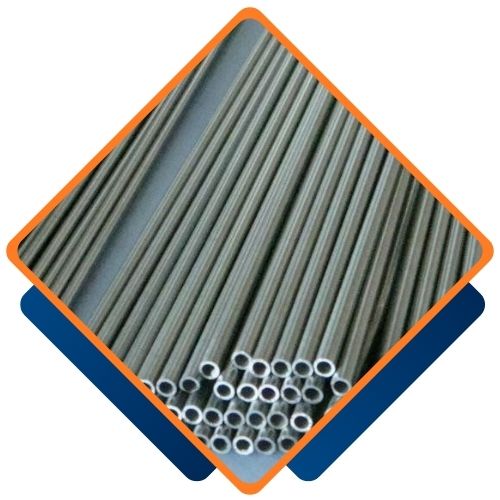

| SS 2507 Seamless Tube Size | 3.35 mm OD To 101.6 mm OD, 15 NB to 150 NB IN |
| 2507 Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| DSS 2507 tubing wall thickness | 0.020″ –0.220″ (special wall thicknesses available) |
| 2507 Pipe Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Duplex 2507 Pipe & Tube Finish | Polished, AP (Annealed & Pickled), MF, NO.1, NO.4, BA (Bright & Annealed), 2B, BA, HL, 8K, Mirror finish,etc |

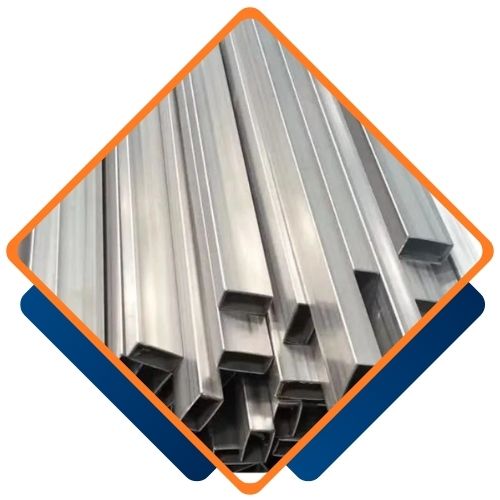

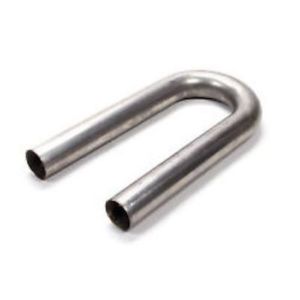

| 2507 Pipe & Tube Form | Round, Hollow, Square,Rectangular, Hydraulic, Coiled, Straight Pipes, “U” Shape, Pan Cake Coils etc. |
| Super Duplex 2507 Pipe & Tube Length | Single Random, Double Random, Standard & Cut length |
| 2507 Pipe & Tube End | Beveled End,Plain End, Treaded. |
| 2507 Pipe & Tube Type | 2507 Seamless / ERW/ Welded / Fabricated / EFW / CDW / DOM / CEW Pipes |
| Marking | All 2507 Pipes are marked as follows: Grade, Standard, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |

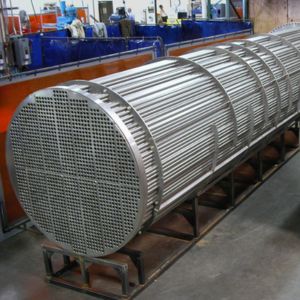

| Super Duplex 2507 Tube Application | Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger |
| Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Specialized in | Large Dia 2507 Pipe 2507 Capillary Tube & Other Odd Size 2507 Super Duplex Heat Exchanger & Condenser Tubes |
| Super Duplex | C | N | P | Si | Mn | Mo | Ni | Cr | S | Other |
| 0.030 | 0.24/0.32 | 0.035 | 0.80 | 1.20 | 3.0/5.0 | 6.00/8.00 | 24.0/26.0 | 0.020 | Cu:0.50 |
| Super Duplex | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Super Duplex Steel Seamless Tubing from Vipul Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Super Duplex steel solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Vipul Pipes and Tubes, one of the largest suppliers of Super Duplex Steel Seamless Tubing in the Chennais, India, offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Super Duplex steel products in the region, delivering reliable solutions to meet diverse project requirements.
Yes, we provide custom sizes for Super Duplex Steel Seamless Tubes to meet your specific requirements. At Vipul Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@vipulpipesandtubes.co.in.
Super Duplex Steel Seamless Tubing is widely used in applications that require exceptional corrosion resistance in addition to high strength. This tubing is essential to the transportation of corrosive fluids under high pressure in industries like chemical processing, desalination, offshore oil and gas, and marine engineering. Heat exchangers, hydraulic lines, instrumentation systems, subsea umbilicals, and structural elements subjected to challenging conditions are all perfect candidates for it. It is appropriate for demanding operating conditions due to its seamless construction, which improves durability, reliability, and leak resistance. It is a favoured option for mission-critical systems due to its extended service life and resilience to stress.
