Home > Stainless Steel > Stainless Steel Square Pipes

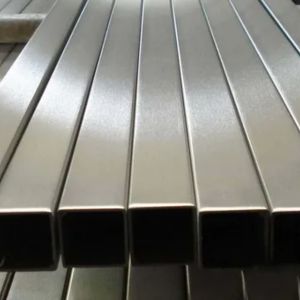

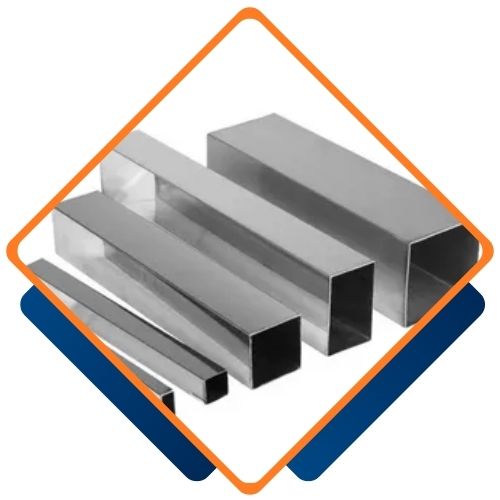

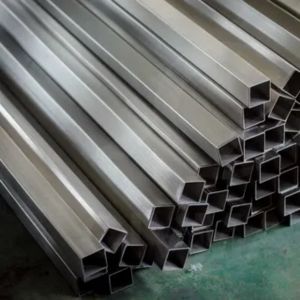

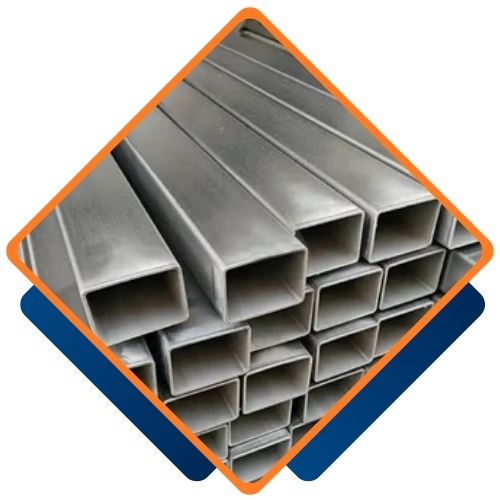

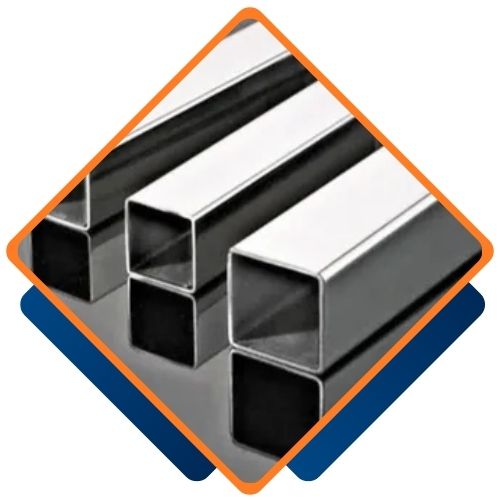

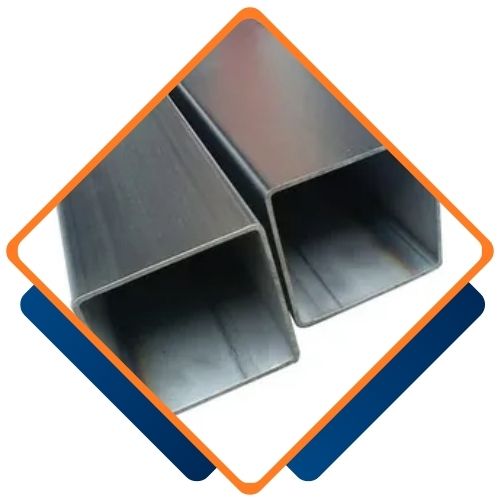

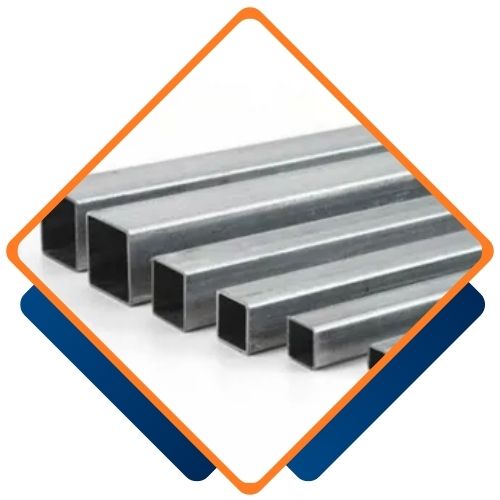

Vipul Pipes and Tubes, Chennai, India-based company, is a reliable producer and supplier of high-quality Stainless Steel Square Pipes. The company is known for precision engineering, strength, and strict adherence to international specifications and is offering a wide variety of square pipes appropriate for various industrial and architectural uses. With advanced manufacturing plants and a focus on quality control, Vipul Pipes and Tubes offers corrosion-resistant, high-strength stainless steel products that fulfill the varied needs of customers across industries. Their products are highly valued for their perfect finish, precise dimensions, and long-lasting life, earning them a choice across industries.
Stainless Steel Square Tubes produced by Vipul Pipes and Tubes are mostly produced from grades like SS 304, 304L, 316, and 316L. The alloy contains Chromium (18-20%), Nickel (8-12%), Manganese (2%), and minor components such as Carbon (0.08% max), Silicon, and Phosphorus. These tubes provide best corrosion resistance, tensile strength in the range of 515 to 620 MPa, and yield strength approximately 205 MPa. They have good elongation characteristics (≥ 40%) and good toughness over a large temperature interval and are thus used in both cryogenic and high-temperature applications.
| Pipe Size | 12.75 X 12.75, 15 X 15, 20 X 20, 25 X 25, 30 X 30, 40 X 40, 50 X 50, 60 X 60, 75 X 75, 80 X 80, 90 X 90, 100 X100 |
| Grades | TP – 304/L/H, TP – 316/L/H/Ti, TP – 317L, TP – 321/H, TP – 347/H, 202, JT – 7, J4 – 1, TP – 409/L, TP – 410, TP – 430Ti, TP 439 |
| Standards | ASTM A249 – A269 – A312 – A358 – A409 – A554 – A778 – A789 – A790 |
| TOLERANCE on Length | Commercial Length: 6000mm +/- 30mm Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm |
| Finish | Polished Grit 120 – 600, Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm,Mirror Polished |
Hollow Sections:
Square:10 mmx10mm – 500 mmx500mm
Retangular:10mm x 20mm – 600mmx400mm
Round: 1/8″ – 4″
Wall Thickness: 0.5 – 20.0mm
Length:0.3 mtr – 18 mtr as customer required
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing stainless steel square pipes from Vipul Pipes and Tubes ensures high-quality materials with excellent corrosion resistance and durability. Our products are tailored to meet diverse industry standards, offering reliability and versatility for various applications. Our commitment to customer service and timely delivery makes us a trusted supplier.
Vipul Pipes and Tubes, one of the largest suppliers of Stainless Steel Square Pipes in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Outside Diameter | Qty/B | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.2 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inches | mm | Lgh | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs | Kgs |
| 3/8″ | 9.5 | 100 | 0.81 | 0.94 | 1.06 | 1.18 | 1.29 | 1.51 | 1.82 | |||||
| 1/2″ | 12.7 | 100 | 1.10 | 1.28 | 1.45 | 1.61 | 1.78 | 2.10 | 2.55 | |||||
| 5/8″ | 15.9 | 100 | 1.39 | 1.62 | 1.84 | 2.05 | 2.26 | 2.68 | 3.28 | |||||
| 3/4″ | 19.1 | 100 | 1.69 | 1.96 | 2.22 | 2.49 | 2.75 | 3.26 | 4.01 | |||||
| 7/8″ | 22.2 | 100 | 1.97 | 2.29 | 2.60 | 2.91 | 3.22 | 3.83 | 4.72 | |||||
| 1″ | 25.4 | 100 | 2.26 | 2.63 | 2.99 | 3.35 | 3.71 | 4.41 | 5.45 | |||||
| 11/8″ | 28.6 | 50 | 2.55 | 2.97 | 3.38 | 3.79 | 4.19 | 5.00 | 6.18 | |||||
| 11/4″ | 31.8 | 50 | 2.84 | 3.31 | 3.77 | 4.23 | 4.68 | 5.58 | 6.91 | |||||
| 11/2″ | 38.1 | 50 | 3.42 | 3.98 | 4.53 | 5.09 | 5.64 | 6.73 | 8.34 | |||||
| 15/8″ | 41.3 | 50 | 3.71 | 4.32 | 4.92 | 5.52 | 6.12 | 7.31 | 9.07 | |||||
| 13/4″ | 44.5 | 50 | 4.00 | 4.66 | 5.31 | 5.96 | 6.61 | 7.90 | 9.80 | |||||
| 2″ | 50.8 | 10 | 6.08 | 6.82 | 7.57 | 9.04 | 11.24 | 14.83 | 21.79 | |||||
| 21/2″ | 63.5 | 10 | 7.62 | 8.56 | 9.50 | 11.36 | 14.13 | 18.69 | 27.58 | |||||
| 3″ | 76.2 | 10 | 9.17 | 10.30 | 11.43 | 13.68 | 17.03 | 22.55 | 33.37 | 43.88 | ||||
| 31/2″ | 88.9 | 10 | 10.71 | 12.03 | 13.36 | 15.99 | 19.92 | 26.41 | 39.16 | 51.60 | ||||
| 4″ | 101.6 | 10 | 18.31 | 22.82 | 30.27 | 44.95 | 59.32 | 73.39 | 87.16 | |||||
| 5″ | 127 | 10 | ||||||||||||
| 6″ | 152.4 | 10 | ||||||||||||
Yes, we offer custom sizes for Stainless Steel Square Pipes to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.
Stainless Steel Square Pipes are extensively applied in numerous industries because they possess strength, corrosion resistance, and beauty. They are employed for structural support, handrails, and pillars in building construction. In automobiles, they are employed in exhaust pipes and chassis parts. They are essential in chemical processing facilities, aquatic environments, food and beverage processing, and drug production because they are hygienic and non-reactive in nature. Additionally, these pipes are popular in architectural and decorative applications like furniture, fencing, and gates, owing to their sleek appearance and long-lasting durability under harsh environmental conditions.
