Home > Stainless Steel > Stainless Steel Pipes
With its main office in Chennai, India, Vipul Pipes and Tubes is a top producer and supplier of high-grade stainless steel pipes for a variety of commercial and industrial uses. These pipes, which are made with premium stainless steel and cutting-edge technology, are renowned for their longevity, resistance to corrosion, and precision engineering. Vipul’s products are a reliable option for a variety of industries, including petrochemicals, food processing, construction, and power generation, because they meet both national and international quality standards. Vipul Pipes and Tubes has established a solid reputation for providing superior stainless steel piping solutions by prioritising client satisfaction and on-time delivery.
Iron, chromium (minimum 10.5%), and different concentrations of nickel, molybdenum, and other alloying elements, depending on the grade (e.g., 304, 316, 321), make up the majority of stainless steel pipes. These compositions improve strength, temperature tolerance, and resistance to corrosion. Mechanical characteristics typically include yield strength between 200 and 450 MPa, elongation up to 40%, and tensile strength between 500 and 750 MPa. Stainless steel pipes are ideal for high-temperature, high-stress, and corrosive environments because of their exceptional resistance to oxidation, wear, and pressure. In a variety of applications, they also provide good formability and weldability.
| Specifications | ASTM A312/A358, ASME SA312/SA358 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Surface | Brushed, Mill Finished, Anodized, Sand Blasted, Finished Polished. |

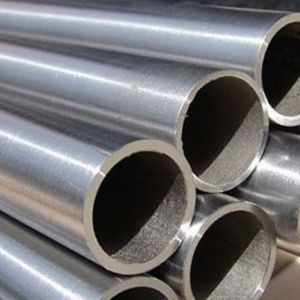

| Seamless Pipes Size | 1/2″ NB – 24″ NB. |
| ERW Pipes Size | 1/2″ NB – 24″ NB. |

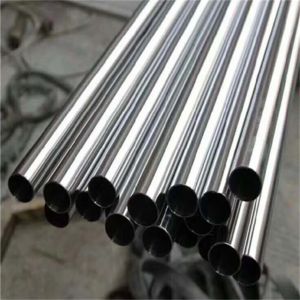

| EFW Pipes Size | 6″ NB – 100″ NB. |

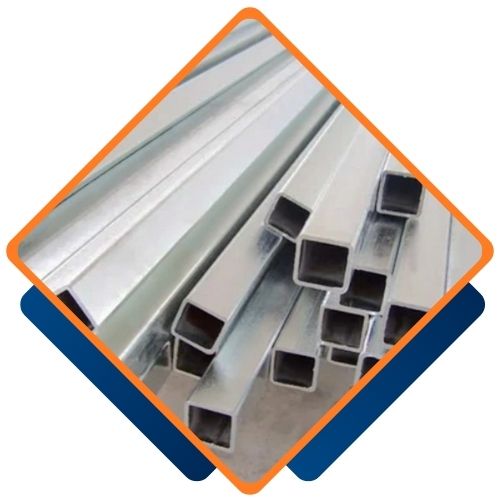

| Form | Round, Square, Rectangular, Hydraulic etc. |
| Length | Single Random, Double Random & Cut Length. |

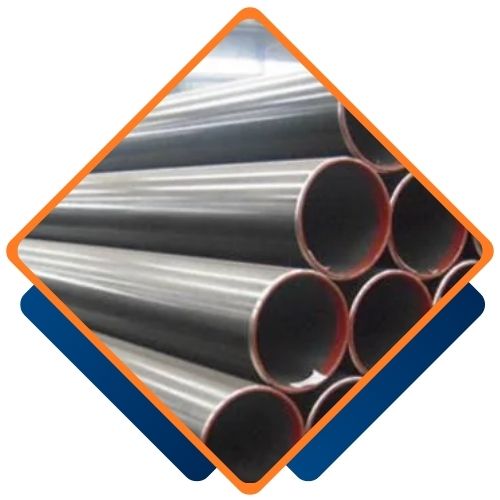

| Types | Seamless / ERW / Welded / Fabricated / LSAW Pipes. |
| Nominal Bore | Outside Diameter | Sch-5S | Sch-10S | Sch-40S | Sch-80S | Sch-160S | Sch-XXS | |||||||
| mm | INCH | mm | Wt | Weight | Wt | Weight | Wt | Weight | Wt | Weight | Wt | Weight | Wt | Weight |
| mm | (Kg/mt) | mm | (Kg/mt) | mm | (Kg/mt) | mm | (Kg/mt) | mm | (Kg/mt) | mm | (Kg/mt) | |||
| 3 | 1/8 | 10.3 | 1.24 | 0.276 | 1.24 | 0.28 | 1.73 | 0.37 | 2.41 | 0.47 | – | – | – | – |
| 6 | 1/4 | 13.7 | 1.24 | 0.390 | 1.65 | 0.49 | 2.24 | 0.631 | 3.02 | 0.80 | – | – | – | – |
| 10 | 3/8 | 17.1 | 1.24 | 0.490 | 1.65 | 0.63 | 2.31 | 0.845 | 3.20 | 1.10 | – | – | – | – |
| 15 | 1/2 | 21.3 | 1.65 | 0.800 | 2.11 | 1.00 | 2.77 | 1.27 | 3.75 | 1.62 | 4.75 | 1.94 | 7.47 | 2.55 |
| 20 | 3/4 | 26.7 | 1.65 | 1.03 | 2.11 | 1.28 | 2.87 | 1.68 | 3.91 | 2.20 | 5.54 | 2.89 | 7.82 | 3.63 |
| 25 | 1 | 33.4 | 1.65 | 1.30 | 2.77 | 2.09 | 3.38 | 2.50 | 4.55 | 3.24 | 6.35 | 4.24 | 9.09 | 5.45 |
| 32 | 1 1/4 | 42.2 | 1.65 | 1.65 | 2.77 | 2.70 | 3.56 | 3.38 | 4.85 | 4.47 | 6.35 | 5.61 | 9.70 | 7.77 |
| 40 | 1 1/2 | 48.3 | 1.65 | 1.91 | 2.77 | 3.11 | 3.68 | 4.05 | 5.08 | 5.41 | 7.14 | 7.25 | 10.16 | 9.54 |
| 50 | 2 | 60.3 | 1.65 | 2.40 | 2.77 | 3.93 | 3.91 | 5.44 | 5.54 | 7.48 | 8.74 | 11.1 | 11.07 | 13.44 |
| 65 | 2 1/2 | 73.0 | 2.11 | 3.69 | 3.05 | 5.26 | 5.16 | 8.63 | 7.01 | 11.4 | 9.53 | 14.9 | 14.2 | 20.39 |
| 80 | 3 | 88.9 | 2.11 | 4.51 | 3.05 | 6.45 | 5.49 | 11.30 | 7.62 | 15.2 | 11.1 | 21.3 | 15.24 | 27.65 |
| 100 | 4 | 114.3 | 2.11 | 5.84 | 3.05 | 8.36 | 6.02 | 16.07 | 8.56 | 22.3 | 13.49 | 33.54 | 17.12 | 41.03 |
| 125 | 5 | 141.3 | 2.77 | 9.47 | 3.40 | 11.57 | 6.55 | 21.8 | 9.53 | 31.97 | 15.88 | 49.11 | 19.05 | 57.43 |
| 150 | 6 | 168.3 | 2.77 | 11.32 | 3.40 | 13.84 | 7.11 | 28.3 | 10.97 | 42.7 | 18.2 | 67.56 | 21.95 | 79.22 |
| 200 | 8 | 219.1 | 2.77 | 14.79 | 3.76 | 19.96 | 8.18 | 42.6 | 12.7 | 64.6 | 23.0 | 111.2 | 22.23 | 107.8 |
| 250 | 10 | 273.1 | 3.40 | 22.63 | 4.19 | 27.78 | 9.27 | 60.5 | 12.7 | 96.0 | 28.6 | 172.4 | 25.40 | 155.15 |
| 300 | 12 | 323.9 | 3.96 | 31.25 | 4.57 | 36.00 | 9.52 | 73.88 | 12.7 | 132.0 | 33.32 | 238.76 | 25.40 | 186.97 |
| 350 | 14 | 355.6 | 3.96 | 34.36 | 4.78 | 41.3 | 11.13 | 94.59 | 19.05 | 158.08 | 35.71 | 281.70 | – | – |
| 400 | 16 | 406.4 | 4.19 | 41.56 | 4.78 | 47.29 | 12.7 | 123.30 | 21.41 | 203.33 | 40.46 | 365.11 | – | – |
| 450 | 18 | 457.2 | 4.19 | 46.80 | 4.78 | 53.42 | 14.27 | 155.80 | 23.8 | 254.36 | 45.71 | 466.40 | – | – |
| 500 | 20 | 508.0 | 4.78 | 59.25 | 5.54 | 68.71 | 15.09 | 183.42 | 26.19 | 311.2 | 49.99 | 564.68 | – | – |
| 600 | 24 | 609.6 | 5.54 | 82.47 | 6.35 | 94.45 | 17.48 | 255.41 | 30.96 | 442.08 | 59.54 | 808.22 | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Pipes from Vipul Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Vipul Pipes and Tubes, one of the largest suppliers of Stainless Steel Pipes in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Stainless Steel pipes to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.
Stainless steel pipes are used extensively in many different industries because of their strength, hygienic qualities, and ability to withstand heat and corrosion. They are used in the transportation of fluids in harsh environments in the petrochemical and oil and gas industries. Because their surfaces are easy to clean, the food and beverage industry uses them for hygienic processing lines. They serve as water systems, handrails, and structural support in construction. These pipes are also essential to HVAC systems, power plants, pharmaceuticals, and marine applications. Stainless steel pipes are an affordable and dependable option for contemporary infrastructure because of their adaptability, durability, and low maintenance requirements.
