Home > Stainless Steel > Stainless Steel Condenser Tubing

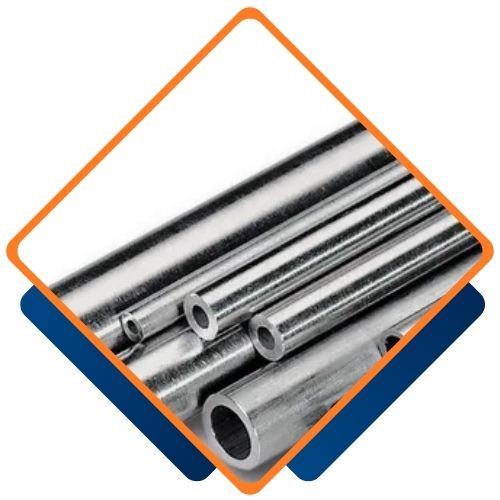

High-performance stainless steel condenser tubing designed for heat transfer and cooling applications across industries is available from Vipul Pipes and Tubes, a reputable manufacturer and supplier with headquarters in Chennai, India. Vipul, which is renowned for its precision engineering and adherence to global standards, provides tubing solutions that are long-lasting, corrosion-resistant, and thermally efficient. These tubes are perfect for condensers found in chemical processing, power plants, HVAC systems, and marine settings. Vipul Pipes and Tubes offers both welded and seamless options, guaranteeing clients in both domestic and international markets the best possible performance, longevity, and affordability.
Austenitic grades such as SS 304, 304L, 316, or 316L are commonly used to make stainless steel condenser tubing. These grades contain 16–18% chromium and 8–14% nickel, with molybdenum added in 316 for increased corrosion resistance. These grades provide outstanding ductility, strength, and resistance to stress corrosion cracking, pitting, and crevice corrosion. Tensile strength ranges from 485 to 620 MPa, yield strength ranges from 170 to 310 MPa, and elongation is approximately 35%. The tubing’s smooth surface and high thermal conductivity make it ideal for heat transfer in condensers and evaporative cooling systems.
| Specifications | ASTM A213, ASTM A249, ASTM A269 |
| Size Range | 6 mm OD to 219.1 mm OD |
| Outside Diameter | From 6mm~2500mm |

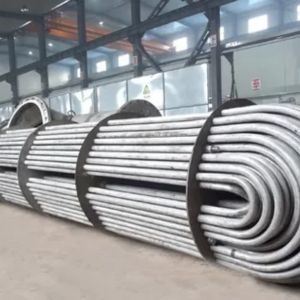

| Length | 1 Mtr Upto 32 Mtrs Long / U-Tube Length – 32 Mtrs U Tube Coil – 50 Mtrs |
| Thickness | 0.7 mm Thick To12.7 mm Thick |
| Form | Seamless, Welded, Hot Rolled, Cold Drawn |

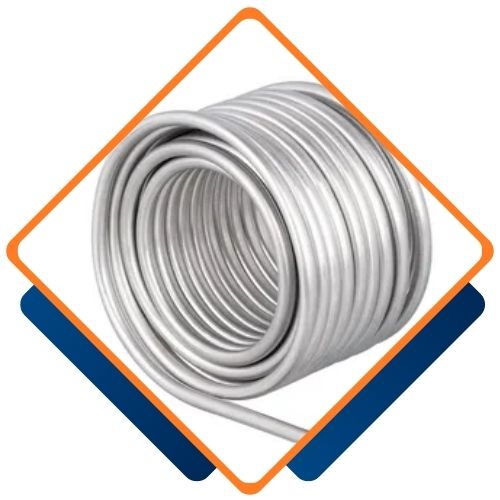

| Shapes | Straight tube, Coil tubing |
| Ends | Plain end, Bevelled end |
| Grades | TP – 304,304L,316,316L,201 |
| STAINLESS STEEL Condenser TUBE GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Condenser Tubing from Vipul Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Vipul Pipes and Tubes, one of the largest suppliers of Stainless Steel Condenser Tubing in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| 12.70 mm OD | x | 0.6 mm wall | in lengths up to 20 m (65.62 ft) |
| 15.00 mm OD | x | 1.22 mm wall | in lengths up to 20 m (65.62 ft) |
| 19.05 mm OD | x | 1.65 mm wall | in lengths up to 20 m (65.62 ft) |
| 25.40 mm OD | x | 2.11 mm wall | in lengths up to 20 m (65.62 ft) |
| 38.10 mm OD | x | 2.64 mm wall | in lengths up to 20 m (65.62 ft) |
Yes, we offer custom sizes for Stainless Steel Condenser Tubing to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.
Industries that need effective heat exchange and resistance to corrosive environments frequently use stainless steel condenser tubing. It is necessary for condensing steam in cooling systems in thermal plants and power generation facilities. It facilitates heat transfer in condensers and chillers used in refrigeration and HVAC systems. These tubes can tolerate high temperatures and corrosive fluids in the chemical and petrochemical industries. Its ability to withstand corrosion from seawater is advantageous for marine applications. These tubes are also used in the pharmaceutical and food processing industries, where durability and hygienic conditions are crucial. They are perfect for long-term, high-efficiency condenser systems because of their dependability and performance.
