Home > Stainless Steel > Stainless Steel 420 Tubing
Located in Chennai, India, Vipul Pipes and Tubes is a well-known manufacturer and supplier of premium stainless steel 420 tubing for uses requiring high hardness, moderate corrosion resistance, and wear resistance. High-carbon martensitic stainless steel 420 is renowned for its exceptional strength and polishability. Vipul produces 420 tubing that satisfies international standards like ASTM A268 and offers excellent surface finish, consistent quality, and precise dimensions. Vipul’s stainless steel 420 tubing, which is widely used in the engineering, automotive, medical, and cutlery industries, blends performance and durability for demanding operating conditions.
The main constituents of stainless steel 420 tubing are 12–14% chromium and 0.15–0.40% carbon, with trace amounts of silicon, phosphorus, sulphur, and manganese. Because of its composition, the tubing can be heat-treated to a hardness of up to 50 HRC. It has good wear resistance and a tensile strength of roughly 700–850 MPa. 420 offers adequate resistance in mild environments and fresh water, despite being less corrosion-resistant than austenitic grades. In addition, the material is magnetic and has good ductility when annealed. It works well for precise applications that call for hardness and mechanical strength.
Item | Stainless Steel 420 Tube |
Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |

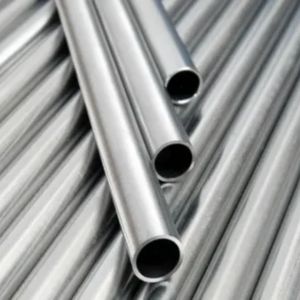

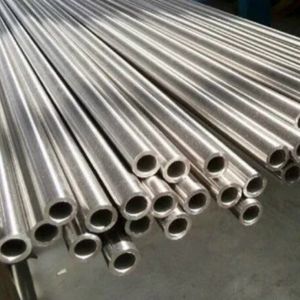

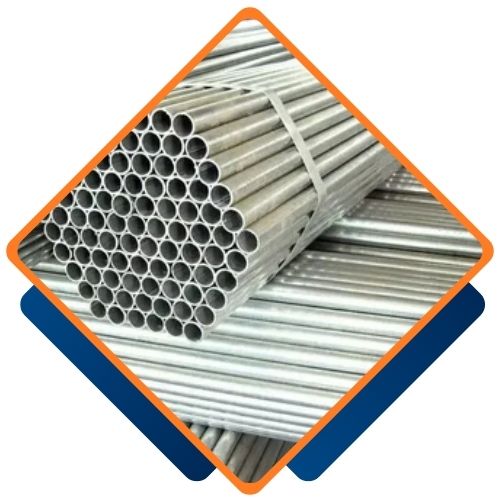

Type | Seamless / ERW / Welded / Fabricated / CDW |
Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |

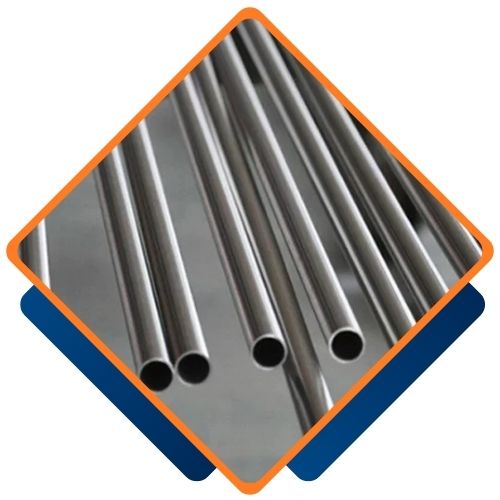

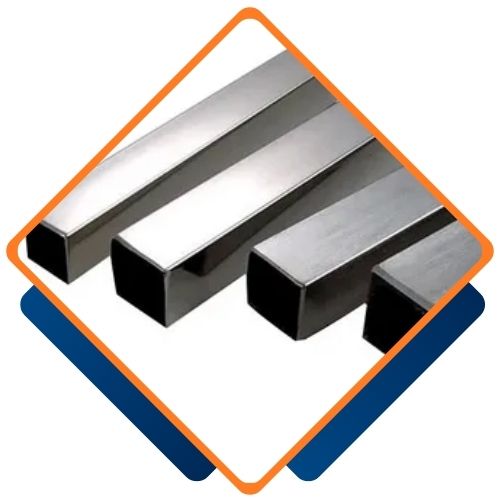

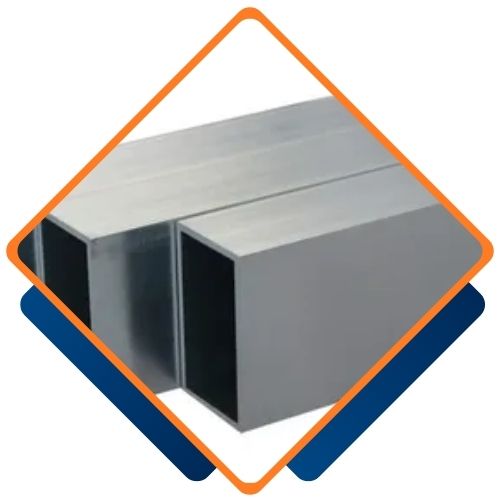

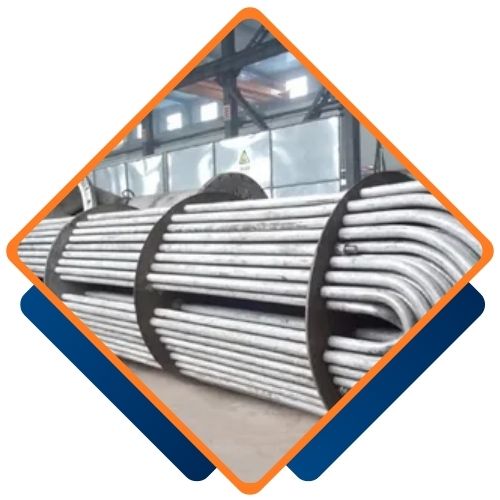

Form | 420 Round Tubing, 420 Square Tubes, 420 Rectangular Tube, “U” Shape 420 Tubing, 420 Hydraulic Tubes |
Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
Dimension | All Tubes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | |
|---|---|---|---|---|---|---|---|
| 420 | Min. max. | 0.15 – | – 1 | – 1 | – 0.040 | – 0.03 | 12.0 14.0 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 655 | 345 | 25 | 241 max | – |
| 204 | 1600 | 1360 | 12 | 444 | 20 |
| 316 | 1580 | 1365 | 14 | 444 | 19 |
| 427 | 1620 | 1420 | 10 | 461 | # |
| 538 | 1305 | 1095 | 15 | 375 | # |
| 593 | 1035 | 810 | 18 | 302 | 22 |
| 650 | 895 | 680 | 20 | 262 | 42 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 420 Tubing from Vipul Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Vipul Pipes and Tubes, one of the largest suppliers of Stainless Steel 420 Tubing in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Stainless Steel 420 Tubing to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.
420 stainless steel Because of its high hardness and capacity to hold a sharp edge, tubing finds extensive application in industrial tools, surgical instruments, and cutlery. It is used in parts like shafts and valves that are subjected to wear and friction in the automotive industry. It is used for precision parts, pump shafts, and bushings in the engineering and machinery sectors. It is used in medical applications for tools and apparatus where durability and resistance to corrosion are crucial. The tubing, which provides durability and dependability in somewhat corrosive and abrasive environments, is also utilised in aerospace, construction, and defence.
