Stainless Steel 317L PipesManufacturer, Supplier and Exporter in Chennai, India

Located in Chennai, India, Vipul Pipes and Tubes is a reputable manufacturer and supplier of 317L stainless steel pipes. It is renowned for providing high-end piping solutions that are engineered to exhibit exceptional corrosion resistance in demanding environments. Low-carbon, molybdenum-bearing austenitic stainless steel SS 317L provides enhanced resistance to pitting and chemical attack. These pipes are made by Vipul Pipes and Tubes in accordance with international standards, guaranteeing accuracy, durability, and long-term performance. The company serves important industries like the pulp and paper, chemicals, pharmaceutical, and marine sectors in India and around the world with a robust supply chain network and a dedication to customer satisfaction.

317L Stainless Steel Pipes Exporter in India, SS UNS S31703 Pipes Exporter in India, 317L Stainless Steel Pipe Manufacturer in Chennai, SUS 317L Pipes Price List in Chennai, ASTM A312 Stainless Steel 317L Pipe Supplier in Chennai, Stainless Steel 1.4438 Pipes in India

In order to improve corrosion resistance and reduce sensitisation during welding, stainless steel 317L pipes are made of iron, 18–20% chromium, 11–15% nickel, 3–4% molybdenum, and a low carbon content (maximum 0.03%). With a minimum tensile strength of 515 MPa, a yield strength of 205 MPa, and an elongation of 35–40%, these pipes demonstrate exceptional mechanical qualities. SS 317L is a strong and dependable material for use in chemical processing and marine applications because it is specifically made to withstand acidic environments, chloride-rich solutions, and high-temperature operations.

Stainless Steel 317L Pipes Specification

Specifications	ASTM A312, A358 / ASME SA312, SA358
Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24″ NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Thickness Range	0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Type	Seamless / ERW / Welded / Fabricated / CDW
Form	Round Pipes, Square Pipes, Rectangular Pipes
Length	Single Random, Double Random & Required Length
End	Plain End, Beveled End, Treaded
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
EN 10216-5	EN 10216 317/317L Seamless Steel Pipe, EN 10216-5 1.4449 / 1.4438 Seamless Steel Pipes for pressure purposes
EN 10217-7	EN 10217 317/317L Welded Steel Pipe, Steel EN 10217-7 1.4449 / 1.4438 Welded Pipes for pressure purposes

Stainless Steel 317L Pipes Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
317L	min.	–	–	–	–	–	18.0	3.00	11.0	–
317L	max.	0.03	2.0	0.75	0.040	0.03	20.0	4.00	15.0	–

SS 317L Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
317L	515	205	35	95	217

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

SS 317L Schedule 40 Pipe Price List in Chennai, Stainless Steel S31703 Pipes Supplier in India, SS 317L Pipes Supplier in India, ASTM A312 Stainless Steel 317L Pipe Exporter in Chennai, AISI 317L Pipes Exporter in Chennai, 1 inch SS 317L Pipe Price in India, SS 317L Pipe Weight Chart, SS 317L Schedule 20 Pipe Thickness, 317L Austenitic Stainless Steel Pipe Supplier in Chennai

Why Choose Stainless Steel 317L Pipes from Vipul Pipes and Tubes?

Choosing Stainless Steel 317L Pipes from Vipul Pipes and Tubes offers corrosion resistance and excellent durability, ideal for harsh environments. Their pipes are precisely engineered for durability and reliability, conforming to stringent industry standards. Brydon offers solutions tailored to suit specific business requirements, backed by exceptional customer service. Furthermore, their commitment to quality ensures longevity and performance, making them a reliable choice for a variety of applications. Trust Brydon’s expertise in providing quality stainless steel for your needs.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 317L Pipes Supplier in Chennai, India

Vipul Pipes and Tubes, one of the largest suppliers of Stainless Steel 317L Pipes in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 317L Pipes Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

ASME SA 312 TP317L Pipes Chennai, Stainless Steel 317L Pipes Supplier in Chennai, 317L Stainless Steel Pipes Exporter in Chennai, SS UNS S31703 Pipes Supplier in Chennai, SS 317L Schedule 20 Pipe Exporter in India

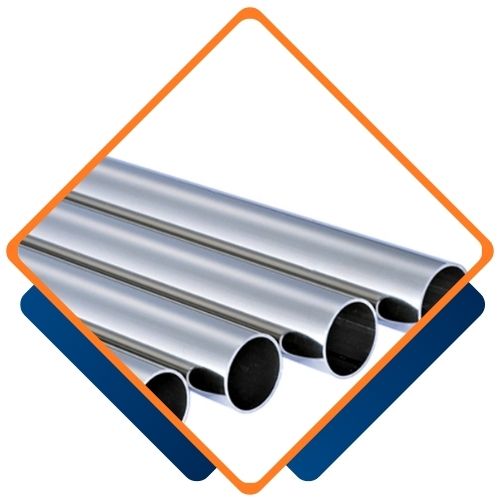

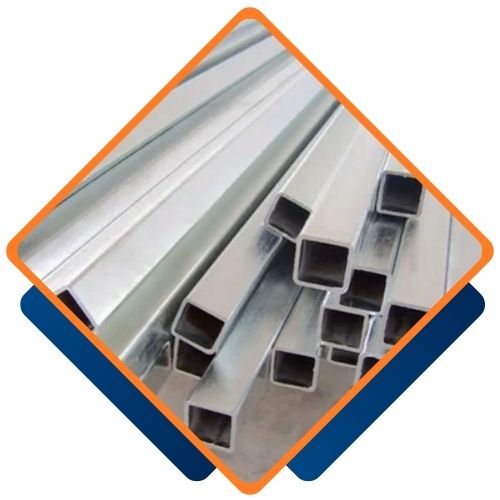

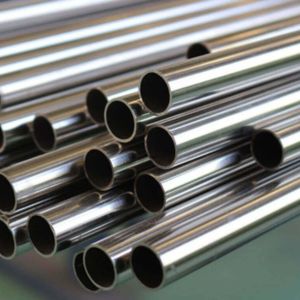

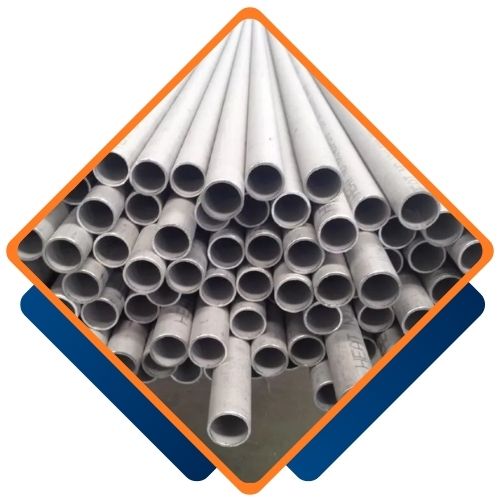

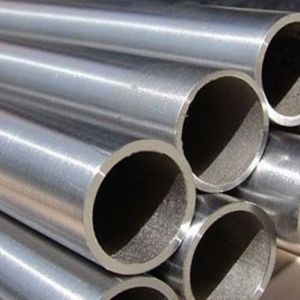

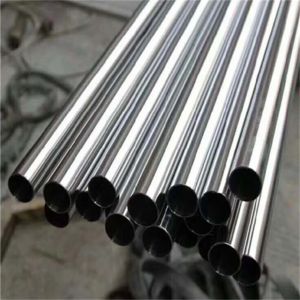

Types of Stainless Steel 317L Pipes

Are Custom Sizes Available for Stainless Steel 317L Pipes?

Yes, we offer custom sizes for Stainless Steel 317L Pipes to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.

SS UNS S31703 Pipes Exporter in India, SUS 317L Pipes Supplier in India, 317L SS Pipes Manufacturer in Chennai, 317L Austenitic Stainless Steel Pipe Dealer in Chennai, Stainless Steel S31703 Pipes Manufacturer in Chennai, SS 317L Pipe Supplier in Chennai

Industries that require exceptional corrosion resistance and structural integrity in challenging environments frequently use stainless steel 317L pipes. Chemical and petrochemical facilities, which handle fluids containing acid and chloride, are common uses. Because of their resistance to sulphur compounds, they are utilised in bleaching equipment in the pulp and paper industry. Their resistance to seawater corrosion is advantageous for marine applications. Additionally, the food processing, power generation, and pharmaceutical processing industries use SS 317L. Because of its low carbon content, it is perfect for welded structures because it prevents intergranular corrosion and guarantees a long service life even in harsh environments.
