Home > Stainless Steel > Stainless steel 310H Welded Tubing

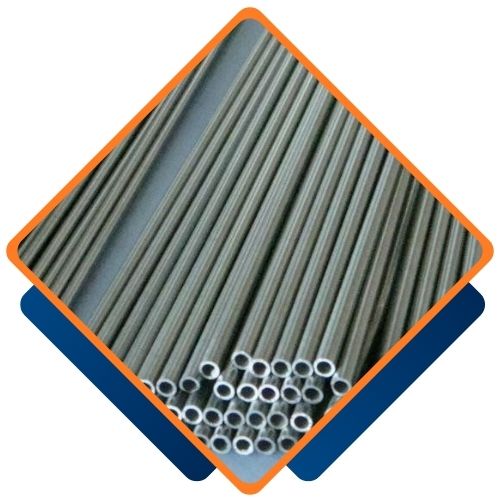

Located in Chennai, India, Vipul Pipes and Tubes is a well-known manufacturer and supplier of premium stainless steel 310H welded tubing that is intended for high-temperature and high-stress industrial applications. A high-carbon variant of 310 stainless steel, SS 310H provides improved mechanical strength and creep resistance at higher temperatures. Advanced welding techniques and strict quality control procedures are used in the production of our welded tubing to guarantee structural integrity, corrosion resistance, and uniformity. Vipul’s 310H welded tubing offers long-term durability and performance in harsh operating conditions, making it perfect for demanding environments in the petrochemical, thermal processing, and power generation industries.
Austenitic stainless steel 310H Welded Tubing has a high content of nickel (19–22%) and chromium (24–26%), along with a higher carbon content (0.04–0.10%) to increase creep resistance and high-temperature strength. When used continuously up to 1100°C, it shows outstanding resistance to oxidation. Mechanical characteristics include good ductility, a yield strength of 205 MPa, and a tensile strength of about 515 MPa. The welded tubing is appropriate for heat-intensive settings and pressure systems needing durability and thermal stability because of its uniform wall thickness, smooth internal surfaces, and strong, clean welds.
| 310H Stainless Steel Tube Finish | Polished, BA (Bright & Annealed),AP (Annealed & Pickled), MF |
|---|---|
| Stainless Steel 310H Tube Standards | ASTM A213,ASTM A269, ASTM A249,ASME SA213,ASME SA269, ASME SA249, NACE MR0175/ISO 15156, PED 97/23/EC,EN 10216-5 TC1 / TC2, AD 2000 |
| Stainless Steel 310H Seamless Tube Size | 3.35 mm OD To 101.6 mm OD |
| 310H stainless steel tubing End | Plain End, Beveled End, Treaded, Ends are suitable for orbital welding |
| Marking | All 310H Stainless Steel tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Stainless Steel 310H Welded Tube Size | 6.35 mm OD To 152 mm OD |
| Stainless Steel 310H tubing wall thickness | 0.020″ –0.220″, (special wall thicknesses available) |
| Stainless Steel 310H tube Form | Straight or ‘U’ bent Tubes, Round,Boiler, Coil , LSAW Tubes, Square, Hydraulic, Rectangular, Hollow Etc. |
| Stainless Steel 310H Tube Type | EFW, Seamless , Fabricated, ERW, Welded |
| SS 310H tube Length | Single Random , Standard & Cut length , Double Random |
| Non-Electropolished | (CFOS) Cleaned for Oxygen Grade Service or Corrosive Systems, (BA) Bright Annealed or (AP) Annealed & Pickled for High-Purity |
| I.D. Surface Finish Options | 5, 7 & 10 µin. Ra |
| 310H stainless steel tubing Testing & Inspection | Visual inspection • Surface roughness measurement • Helium-leak testing • Scanning Electron Microscopy (SEM) • Auger Electron Microscopy (AES) • Election Spectroscopy for Chemical Analysis (ESCA or XPS) • Particle testing • Moisture testing |
| Tolerances | In accordance with: ASTM: A269 & A632, JIS: G 3459 |
| 310H stainless steel tubing Test Certificate | Laboratory Test Certificate from Govt. Approved Lab. Manufacturer Test Certificate according to EN 10204 3.1 B Under Third Party Inspection |
| Electropolished | (EP) Electropolished for Ultra High Purity Systems |
| 310H stainless steel tubingApplication | Oil Tube , Boiler and Heatexchange , Gas Tube, Fluid Tuber |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.0 | 1.0 | 0.045 | 0.030 | 26.0 | 21.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 310H Welded Tubing from Vipul Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Vipul Pipes and Tubes is the largest supplier of Stainless Steel 310H Welded Tubing in Chennai, India. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310H | S31009 | – | X5CrNi18-10 | 2332 | SUS 310H | ||
Yes, Vipul Pipes and Tubes offer large custom designs for Stainless Steel 310H Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@vipulpipesandtubes.co.in.
Industries that work in hot conditions frequently use stainless steel 310H welded tubing. It is perfect for combustion chambers, heat exchangers, superheaters, furnace parts, and thermal processing apparatus. It is appropriate for long-term high-temperature use in power plants, petrochemical refineries, and chemical processing facilities due to its high carbon content, which increases creep strength. The welded form preserves strength and resistance to corrosion while enabling economical fabrication. Furthermore, SS 310H tubing ensures a long service life and lower maintenance requirements in gas turbines, incinerators, and exhaust systems where exposure to oxidizing and carburizing conditions occurs frequently.
