SMO 254 Pipes

SMO 254 Pipes Manufacturer, Supplier and Exporter in Chennai, India

Premium-grade SMO 254 pipes, designed for exceptional corrosion resistance in demanding industrial settings, are available from Vipul Pipes and Tubes, a reputable manufacturer and supplier with headquarters in Chennai, India. High-alloy austenitic stainless steel SMO 254 (UNS S31254) was created for use in brine, seawater, and environments with high chemical exposure. Even in environments with a lot of chloride, it offers exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking. Our precision-fabricated SMO 254 pipes have outstanding mechanical strength, weldability, and surface finish. Vipul guarantees performance and dependability in harsh environments, making it the perfect choice for demanding industries like chemical processing, pulp and paper, offshore, and desalination.

SMO 254 Pipes Exporter in India, SS UNS S31254 Pipes Supplier in India, SMO 254 Pipe Manufacturer in Chennai, Alloy 254 Pipes Price List in Chennai, ASTM A312 SMO 254 Pipe Distributor in Chennai, SMO 254 1.4547 Pipes in India, ASTM A312 TPSMO 254 Pipe Exporters in India

High concentrations of chromium (19.5–20.5%), nickel (17.5–18.5%), and molybdenum (6–6.5%) make up SMO 254 Pipes. Nitrogen (0.18–0.22%) and low carbon (≤0.02%) are also added. Because of its composition, it has an exceptional resistance to corrosion, with a PREN (Pitting Resistance Equivalent Number) > 42.5. Excellent elongation (≥35%), a yield strength of ~300 MPa, and a tensile strength of ~650 MPa are among its mechanical attributes. Even at extremely low temperatures, SMO 254 exhibits good impact toughness, is non-magnetic, and retains its strength and ductility in harsh chemical and marine environments.

SMO 254 Pipes Specification

Pipe Standard	ASTM A312 ASME SA312
Pipe Dimension	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Pipe Sizes	1 / 2″ NB – 24″ NB
Pipe Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Steel Pipe Manufacturing Process	Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
SMO 254 Pipe Shapes	Hydraulic, Round, Rectangle, Square, Hex, Honed
SMO 254 Pipe Schedule	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Pipe Ends	Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for SMO 254 Pipes, Finish as per customer Requirements
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing

SMO 254 Pipes Chemical Composition

Grade	Ni	Cr	Mo	Cu	N	C	Mn	Si	P	S
SMO 254	17.5 – 18.5	19.5 – 20.5	6 – 6.5	0.5 – 1	0.18 – 0.22	0.02 max	1 max	0.8 max	0.03 max	0.01 max

SMO 254 Pipes Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1320-1390 ℃	650	300	35 %

Equivalent Grades of SMO 254 Pipes

STANDARD	WERKSTOFF NR.	UNS	SIS	AFNOR	EN
254 SMO	1.4547	S31254	2378	Z1 CNDU 20.18.06Az	X1CrNiMoCuN20-18-7

SMO 254 Pipes Thermal Properties

Temperature, oC	W/m oC	Temperature, oF	Btu/ft h oF
20	10	68	6
100	12	200	7
200	14	400	8
300	16	600	9.5
400	18	800	10.5
500	20	1000	11.5
600	21	1200	12.5
700	23	1300	13

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ASME SA 312 TPSMO 254 Pipes Chennai, SMO 254 Pipes Exporters in Chennai, SMO 254 Pipe Manufacturers in Chennai, SS UNS S31254 Pipes Supplier in Chennai, SS SMO 254 Schedule 20 Pipe Stockist in in India, Stainless Steel SMO 254 Pipes Distributor in India, SMO 254 Pipes in India

Why Choose SMO 254 Pipes from Vipul Pipes and Tubes?

Choosing SMO 254 Pipe from Vipul Pipes and Tubes assures exceptional quality and durability to suit demanding applications. Our pipes exhibit outstanding corrosion resistance and strength, providing long-lasting performance. With our focus on precision manufacturing, we efficiently meet technical needs. Our team of experts provide personalized support and timely deliveries, enhancing your experience. We put customer satisfaction first and strive to build lasting partnerships. Trust Vipul Pipes and Tubes for the reliable, high-performance piping solutions you need.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest SMO 254 Pipes Supplier in Chennai, India

Vipul Pipes and Tubes, one of the largest suppliers of SMO 254 Pipes in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

SMO 254 Pipes Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

SS SMO 254 Schedule 40 Pipe Price List in Chennai, S31254 Pipes Supplier in India, SS SMO 254 Pipes Price Per Kg, ASTM A312 SMO 254 Pipe Exporter in Chennai, SMO 254 Pipes Stockist in Chennai, 1 inch SS Pipe Price List in India, SS SMO 254 Pipe Weight Chart, SS SMO 254 Schedule 20 Pipe Thickness, Austenitic SMO 254 Pipe Manufacturers in Chennai

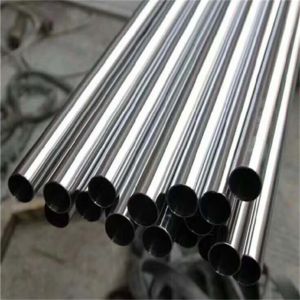

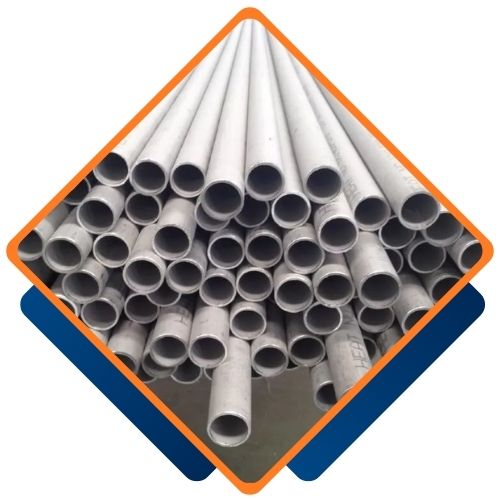

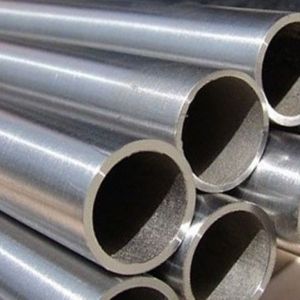

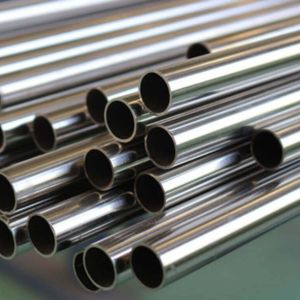

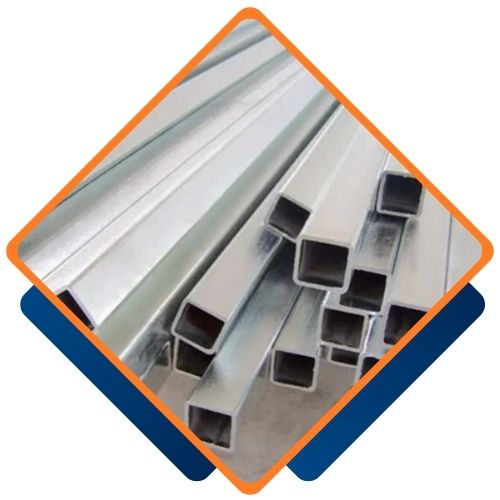

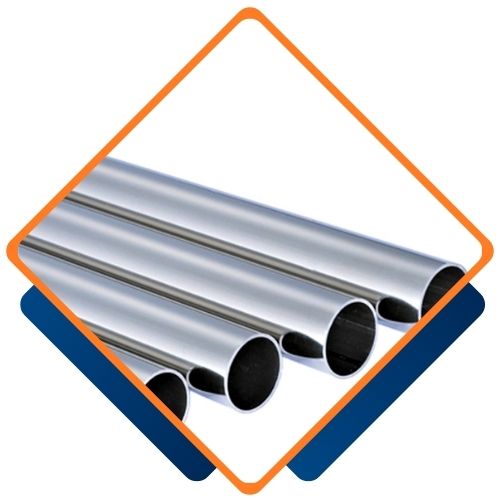

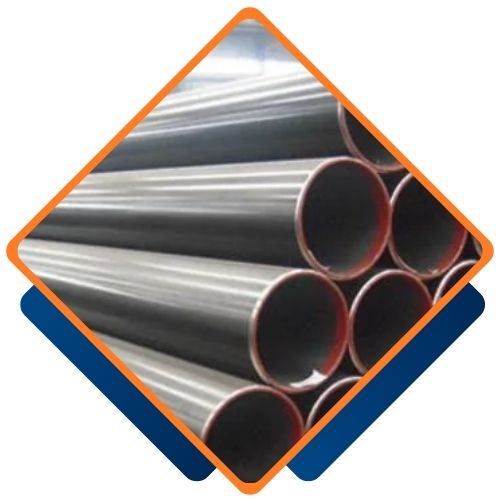

Types of SMO 254 Pipes

Are Custom Sizes Available for SMO 254 Pipes?

Yes, we offer custom sizes for SMO 254 Pipes to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.

SS UNS S31254 Pipes Exporters in India, ASME SA 312 TPSMO 254 Pipes Chennai , Alloy 254 Pipes Distributor in India, SS SMO254 Pipes Price Per Kg, SMO 254 Pipe Supplier in Chennai, SS SMO254 Pipe Stockist in Chennai, SMO 254 Pipes Dealer in Chennai

SMO 254 pipes are extensively utilized in sectors where a high level of corrosion resistance is essential. Seawater handling systems, desalination plants, offshore platforms, heat exchangers, flue gas cleaning, chemical processing systems, and bleaching equipment for pulp and paper are a few examples of applications. They are also utilized in power plant cooling systems, pressure vessels exposed to acids and chlorides, and marine exhausts. In harsh service conditions, SMO 254 is a better option than duplex and traditional stainless steels because of its exceptional ability to withstand localized corrosion, such as pitting and crevice corrosion. It is perfect for long-life critical piping systems because of its dependability and durability.
