Home > Nickel Alloy > Nickel Alloy Welded Tubing

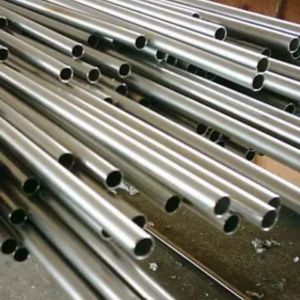

Reputable manufacturer and supplier Vipul Pipes and Tubes in Chennai, India, provides high-grade nickel alloy welded tubing for demanding applications that demand remarkable mechanical strength, corrosion resistance, and thermal stability. To guarantee integrity, accuracy, and durability, our welded nickel alloy tubes are produced using sophisticated welding techniques and strict quality control. These tubes come in a range of nickel-based grades, such as Nickel 200/201, Monel, Inconel, and Hastelloy, and are appropriate for use in high-temperature systems, aggressive chemical environments, and marine applications. Vipul provides customized tubing solutions that satisfy global standards for sectors like petrochemicals, power generation, and aerospace.
Grades like Nickel 200/201, Monel 400, Inconel 600/625, and Hastelloy C276 are all included in Nickel Alloy Welded Tubing; each has its own composition and properties. In addition to varied amounts of chromium, molybdenum, iron, or copper, these alloys usually contain more than 60% nickel. Although mechanical qualities differ by grade, the majority provide outstanding ductility, weldability, and oxidation resistance along with tensile strengths ranging from 450 to 1000 MPa. Long lengths and large diameters can be produced economically while retaining mechanical reliability thanks to the welded construction. High-temperature, high-pressure, and extremely corrosive service conditions are perfect for these tubes.
| Thickness | 0.3mm – 50 mm, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Outer Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB |
| Type | Seamless / ERW / Welded / Fabricated / CDW |

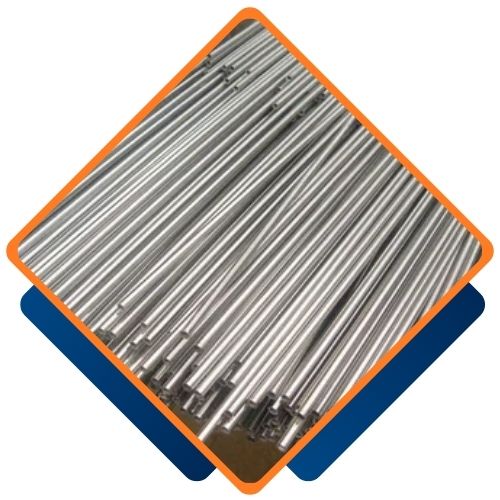

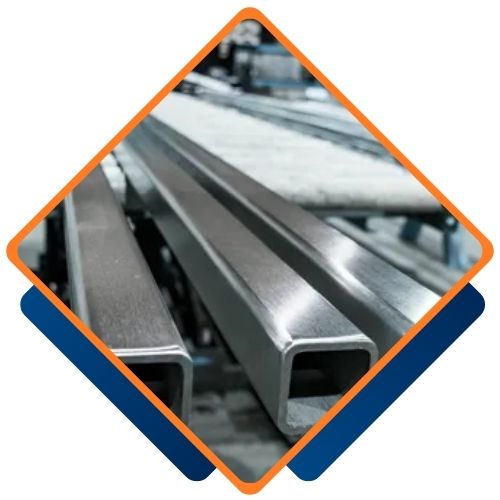

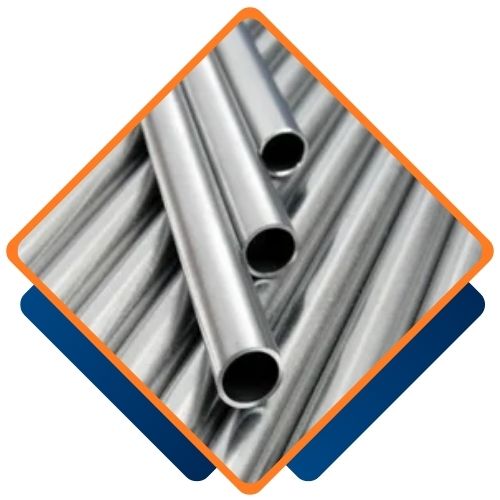

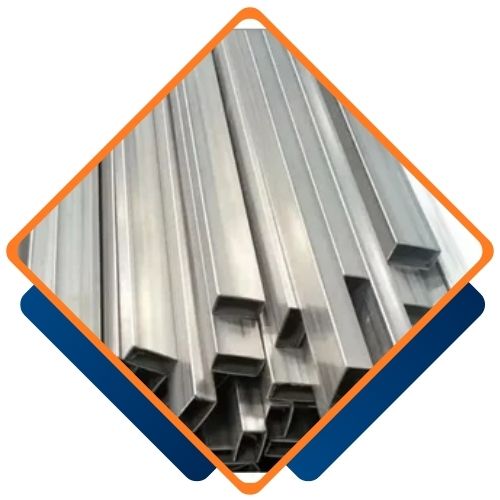

| Form | Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Beveled End, Treaded. |
| Nickel Alloy Tubes | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 200 Tube | 99.0 min | 0.15 max | – | 0.35 max | 0.1 max | 0.4 max | – | 0.01 max | 0.25 max | – |
| Alloy 201 Tube | Balance | 0.15 max | – | 0.35 max | 0.35 max | 0.40 max | – | 0.01 max | 0.25 max | – |
| Nickel Based Alloys | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| Alloy 200/ 201 Tube | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Nickel Alloy Welded Tubing from Vipul Pipes and Tubes ensures high quality and durability, as this tubing offers excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in nickel alloy products ensures you receive a top-tier solution tailored to your needs.
Vipul Pipes and Tubes, one of the largest suppliers of Nickel Alloy Welded Tubing in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Our extensive inventory and commitment to exceptional service make us the go-to choice for nickel alloy products in the region.
| Wall Thickness (WT) | Nickel Tube Size Chart ( O.D.) |
|---|---|
| .010 | 1/16″ , 1/8″ , 3/16″ |
| .020 | 1/16″ , 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″ , 3/16″ |
| .028 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ , 1 1/2″ , 2″ |
| .035 | 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .049 | 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″ |
| .065 | 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 3/4″ , 2″ , 2 1/2″ , 3″ |
| .083 | 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 7/8″ , 2″ , 2 1/2″ ,3″ |
| .095 | 1/2″ , 5/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .109 | 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ |
| .120 | 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/4″ , 2 1/2″ , 3″ |
| .125 | 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 3″ , 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Nickel Alloy Welded Tubing to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.

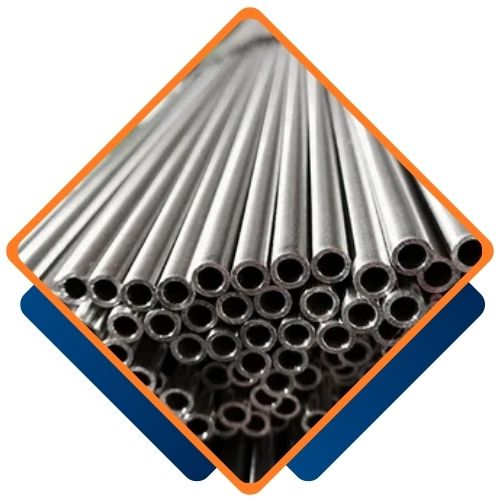

Alloy of Nickel Many industries that demand exceptional resistance to heat, corrosion, and mechanical stress use welded tubing. Heat exchangers, condensers, chemical reactors, nuclear steam generators, instrumentation lines, and marine exhaust systems are examples of common applications. These tubes are utilized in aerospace and power generation because of their ability to withstand high pressures and temperatures. Nickel alloys are resistant to acid, alkali, and aggressive media attacks in the chemical and pharmaceutical industries. For large-diameter or non-critical pressure applications, welded tubing provides an affordable alternative, making it a reliable choice in settings where standard stainless steel tubing is ineffective.
