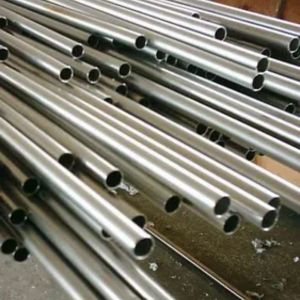

Vipul Pipes and Tubes, a well-established manufacturer and supplier in Chennai, India, specializes in offering high-quality Monel Welded Tubing. It is well known for quality and accuracy, and Vipul Pipes provides corrosion-resistant tubing solutions designed with superior Monel alloys, suitable for harsh industrial applications. Its welded Monel tubes are highly recognized for their superior mechanical strength, thermal conductivity, and seawater and acid-resistant properties. With its cutting-edge manufacturing facilities and compliance with global standards, Vipul Pipes serves a wide range of industries such as marine, chemical processing, oil & gas, and aerospace, supplying custom-made tubing that satisfies stringent application and safety needs.
The Monel Welded Tubing is mainly made up of Nickel (63–70%) and Copper (20–29%), with trace amounts of Iron, Manganese, and Silicon. These tubes possess very good mechanical properties, such as tensile strength of approximately 550–620 MPa and yield strength of 240–345 MPa. They are ductile, with elongation up to 35%, and have strength in a broad range of temperatures. Natural corrosion resistance of Monel against seawater, hydrofluoric acid, and alkalis, which is inherent in these welded tubes, qualifies them for use in hostile and corrosive environments without compromise on weldability and strength.
Monel Welded Tubes : ASTM B725 , ASME SB725 / ASTM B730, ASME SB730
Tube Size : 4 to 219mm W. T.: 0.5 to 20mm
Schedule : SSCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
End Protection : Plastic Caps
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|
| K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.35 – 0.85 | 0.010 max |
| 400 | 63.0- 70.00 max | 2.50 max | 0.3 max | 2.00 max | 0.50 max | Remainder | – | – | 0.024 max |
| Grade | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness (HRb) |
|---|---|---|---|---|
| 400 | 75 to 90 | 25 to 50 | 60 to 35 | 60 to 80 |
| K500 | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15,000 , MPa – 790 | 20 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Monel Welded Tubing from Vipul Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our tubing is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Vipul Pipes and Tubes, one of the largest suppliers of Monel Welded Tubing in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Our extensive inventory and commitment to exceptional service make us the go-to choice for Monel products in the region.
Yes, we offer custom sizes for Monel Welded Tubing to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.
Monel Welded Tubing is extensively utilized by industries that demand high corrosion resistance and mechanical strength. In naval operations, it is particularly suited for seawater systems, heat exchangers, and pump shafts. In the petrochemical and chemical industries, Monel tubes are utilized in alkali and acid processing systems, condensers, and storage tanks. Aerospace applications involve fuel and hydraulic lines, whereas oil & gas industries apply them in offshore platforms and refining units. Owing to their high strength and resistance to corrosion, the tubes are also applied in instrumentation, power generation equipment, and pollution control equipment to provide long-term efficient service in hostile environments.
