Vipul Pipes and Tubes, Chennai, India, is a well-known manufacturer and supplier of high-quality Monel Pipes to various industries. Famous for their excellent corrosion resistance and high strength, Monel Pipes offered by Vipul Pipes and Tubes are best suited for harsh marine, chemical, and oil & gas industry applications. Prioritizing quality, accuracy, and longevity, the organization adheres to international standards and ensures timely delivery to customers in India and the globe. Their sophisticated infrastructure and technical expertise establish them as a reliable partner for high-performance Monel piping solutions.
Monel Pipes consist mainly of nickel (around 63%) and copper (around 28–34%), along with trace amounts of iron, manganese, carbon, and silicon. The combination provides very good corrosion resistance, especially in seawater and chemical atmospheres. Monel Pipes are mechanically strong, with high tensile strength (up to 80–100 ksi), yield strength (35–60 ksi), and excellent elongation and impact toughness. Monel Pipes have residual strength at elevated temperatures and are very tough and durable. Monel also possesses good weldability and fair machinability, hence its suitability for fabrication into intricate forms for severe industrial purposes.
| Specifications | ASTM B163, B165, B725, B730 / ASME SB163, SB165, SB725, SB730 |
| Size | 15″NB TO 150″NB IN |
| Range | 6.35 mm OD upto 254 mm OD in 0.6 TO 20 mm thickness. |

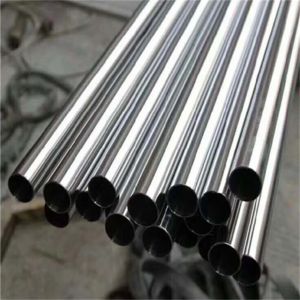

| Monel Seamless Pipe | ASTM B165 /ASME SB 165 |
| Monel Seamless Tube | ASTM B163 /ASME SB 163 |

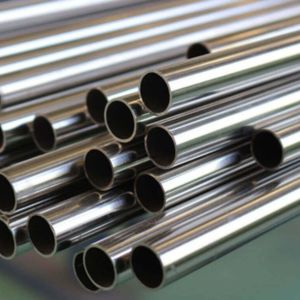

| Monel Welded Pipe | ASTM B725 /ASME SB 725 |
| Monel Welded Tube | ASTM B730 /ASME SB 730 |
| Type | Seamless / ERW / Welded / Fabricated / LSAW Pipes |
| Length | Single Random, Double Random & Required Length |

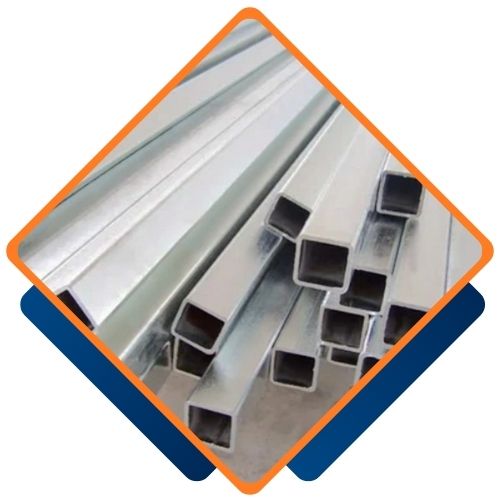

| Form | Round, Square, Rectangular, Hydraulic Etc. |
| End | Plain End, Beveled End, Threaded. |
| Grade | Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) |
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min | 1.0 – 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.50 max | 0.02 max |
| Monel K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.010 max |
| Grade | Density | Melting Point | Tensile Strength Psi, Mpa | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | 80,000, 550 | 240 Mpa | 40 % |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | 1,60,000, 1100 | 790 Mpa | 20 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Monel Pipes from Vipul Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in monel products ensures you receive a top-tier solution tailored to your needs.
Vipul Pipes and Tubes, one of the largest suppliers of Monel Pipes in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel in the region.
Yes, we offer custom sizes for Monel Pipes to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.
Monel Pipes have widespread application in industries that demand higher corrosion resistance and mechanical strength. For use in marine applications, they are best suited for seawater systems, propeller shafts, and ballast systems as they resist corrosion from seawater. In chemical and petrochemical processes, they are employed in heat exchangers, pumps, and pipe systems carrying corrosive fluids. Oil and gas industries use them for offshore platforms, pipes, and refinery hardware. Monel Pipes also have applications in aerospace for hydraulic lines and fuel tanks, as well as in power generation and nuclear power stations. Monel Pipes’ reliability and strength render them necessary in hostile operating conditions.
