Vipul Pipes and Tubes, one of the leading manufacturers and suppliers in Chennai, India, provides best-quality Monel K500 Pipes that boast excellent strength, corrosion resistance, and durable performance. Monel K500 is an age-hardened high-strength nickel-copper alloy that has the same superior corrosion resistance as Monel 400 but with higher mechanical strength and hardness. Vipul Pipes and Tubes provides accuracy-engineered K500 pipes that adhere to international standards, and thus they are ideal for high-pressure applications in the marine, chemical, oil & gas, and aviation sectors. Vipul Pipes and Tubes’s emphasis on quality, reliability, and timely supply differentiates it in the metal piping industry.
Monel K500 Pipes consist mostly of nickel (63%) and copper (27–33%), with small additions of aluminum (2.3–3.15%) and titanium (0.35–0.85%) that allow precipitation hardening. Monel K500 is a superior alloy with very good corrosion resistance and much greater tensile strength (up to 160 ksi) and yield strength (approximately 110 ksi) compared to Monel 400. It also exhibits excellent hardness, fatigue strength, and non-magneticity in the annealed state. These pipes possess strength and toughness at high and sub-zero temperatures and thus are best suited for corrosive and high-stress conditions in a number of industries.
| Dimensions & Specifications | ASTM B 163 ASME SB 163 / ASTM B 165 ASME SB 165 |
|---|---|
| Sizes Available | 15 TO 150″ NB IN |

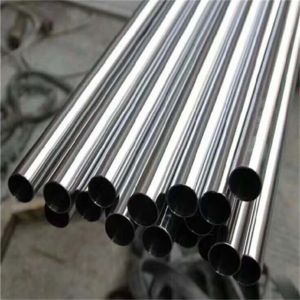

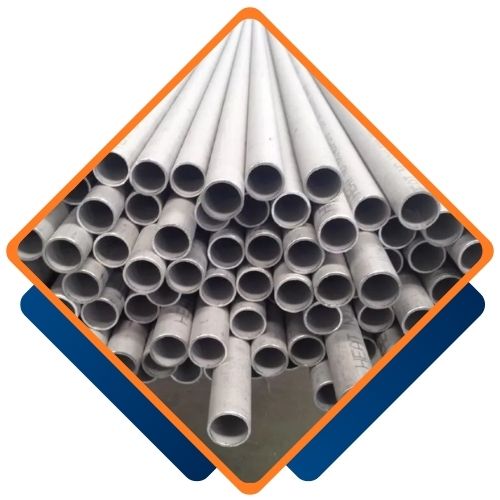

| Most famous types | Seamless / Welded / ERW / Fabricated |

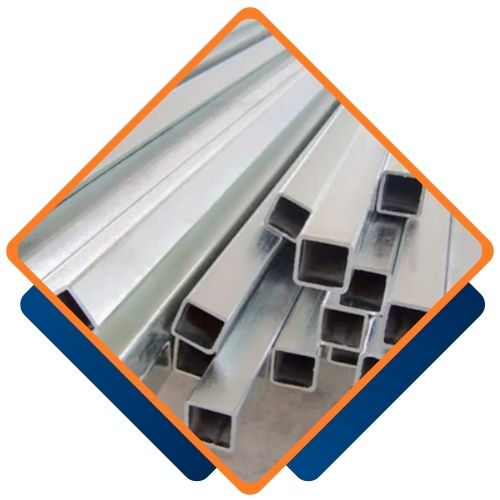

| Manufacturing Pipes Forms | Round, Hydraulic & square pipes |
| Pipe End Bevel | Plain End, BBE, POE, BE, BOE, TBE, BLE, PBE, BOE, TOE, BSE, Beveled End, Treaded |
| DIN Werkstoff nr. | 2.4375 |
| UNS designation | N05500 |
| Monel K500 | S | Ni | Fe | C | Si | Al | Mn | Cu |
| 0.02 max | 63.0 min | 1.0 – 2.5 | 0.3 max | 0.5 max | 0.50 max | 2.0 max | 28.0 – 34.0 |
| Density | Yield Properties (0.2%Offset) | Melting Point | Elongational | Tensile Properties |
| 8.8 g/cm3 | Psi – 35,000 , MPa – 240 | 1350 °C (2460 °F) | 40 % | Psi – 80,000 , MPa – 550 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Monel K500 Pipes from Vipul Pipes and Tubes for their outstanding corrosion resistance, high strength, durability, and superior performance in extreme conditions. These characteristics make them ideal for demanding industrial applications.
Vipul Pipes and Tubes, one of the largest suppliers of Monel K500 Pipes in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for monel products in the region.
| ASTM B165 Monel K500 Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Yes, we offer custom sizes for Monel K500 Pipes to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.
Monel K500 Pipes find perfect use in applications requiring great strength, corrosion resistance, and endurance. In the marine sector, they are employed in shafts, fasteners, seawater valves, and offshore structural parts. The oil & gas industry depends on them for downhole tools, drill collars, and for non-magnetic parts because of their strength and resistance to sulfide stress cracking. They find applications in processing lines, heat exchangers, and pressure vessels in the chemical and petrochemical industries. Aerospace and defense employ Monel K500 pipes as landing gear components and for use in hydraulic systems. The pipes are also used for high-performance applications in power and nuclear plants.
