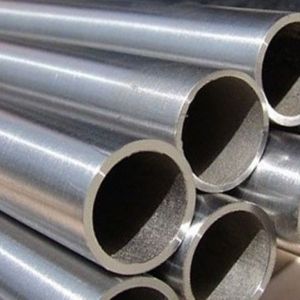

Premium-grade Hastelloy C22 pipes are available from Vipul Pipes and Tubes, a reputable manufacturer and supplier with headquarters in Chennai, India, for use in extremely demanding and corrosive industrial settings. Because of its remarkable resistance to oxidizing and reducing agents, Hastelloy C22 is a nickel-chromium-molybdenum alloy that is ideal for chemical processing, pollution control, and marine applications. International standards like ASTM B622 and B619 are met by our seamless and welded Hastelloy C22 pipes. In harsh conditions with acids, chlorides, and other corrosive substances, these pipes provide exceptional mechanical strength, durability, and resistance to corrosion.
Nickel (~56%), chromium (~22%), molybdenum (~13%), iron (~3%), and tungsten (~3%) make up Hastelloy C22 pipes, with trace amounts of cobalt and other elements. This special alloy composition provides protection against stress corrosion cracking, pitting, and crevice corrosion. Depending on condition and form, mechanical properties include a tensile strength of roughly 690–785 MPa and a yield strength of roughly 283–355 MPa. C22 pipes are appropriate for highly corrosive and high-temperature operations in a range of chemical and industrial processes because they retain structural stability at temperatures as high as 1250°F (677°C).
| Specifications | ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619 |
| Dimensions | ASME, ASTM, and API |
| Size | 15″NB upto 150″NB IN |
| Specialized in | Sizes in Large Diameter |
| Schedule | Schedule 5, 10, 40, STD, 80, 160 |

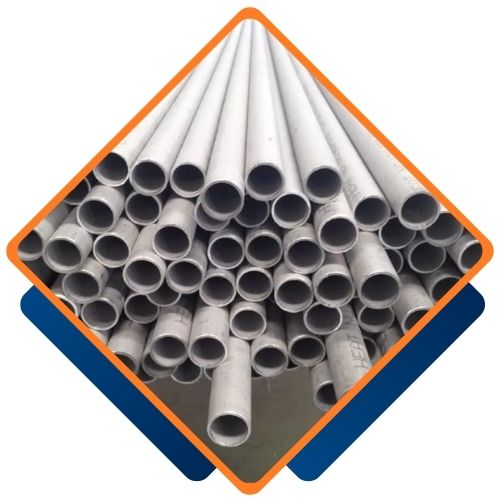

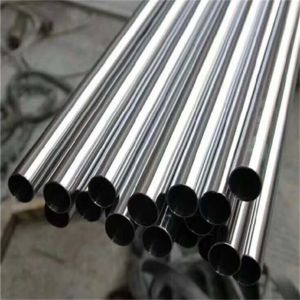

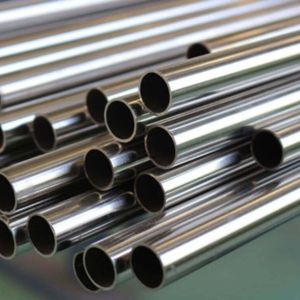

| Type | ERW / Seamless / Welded / LSAW Pipes / Fabricated |
| Form | Hydraulic, Round, Etc |
| Length | Double Random, Single Random, & Cut Length. |
| End | Beveled End, Plain End, Treaded |
| Hastelloy C22 | Fe | Ni | P | C | Co | Mo | Si | Mn | S | Cr |
| 4 – 7 | Balance | 0.04 max | 0.01 max | 2.5 max | 15 – 17 | 0.08 max | 1.0 max | 0.03 max | 14.5 – 16.5 |
| Density | Yield Properties (0.2%Offset) | Melting Point | Elongational | Tensile Properties |
| 8.89 g/cm3 | Psi – 52,000 , MPa – 355 | 1370 °C (2500 °F) | 40 % | Psi – 1,15,000 , MPa – 790 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Hastelloy C22 Pipes from Vipul Pipes and Tubes for their exceptional corrosion resistance, high strength, and durability. These pipes are ideal for marine, chemical, and offshore applications, offering long-lasting performance and superior reliability.
Vipul Pipes and Tubes is the largest supplier of Hastelloy C22 Pipes in Chennai, India, providing top-quality, corrosion-resistant pipes and tubing ideal for marine, industrial, and chemical applications, with reliable delivery and excellent customer service.
| STANDARD | WERKSTOFF NR. | UNS | OR | EN | GOST | JIS |
| Hastelloy C22 | 2.4819 | N10276 | ЭП760 | NiMo16Cr15W | ХН65МВУ | NW 0276 |
Yes, custom sizes are available for Hastelloy C22 Pipes to meet specific project requirements. These pipes can be tailored for various industrial applications. For more details, contact us at sales@vipulpipesandtubes.co.in.
| ASTM B622 Hastelloy C22 Pipe OD mm | Pipe WT mm | in. | Sch | Kg/m |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
The nuclear, chemical processing, waste treatment, marine, and pharmaceutical industries all use Hastelloy C22 pipes in some of the most demanding service environments. Heat exchangers, reactor vessels, scrubber systems, acid gas absorbers, and piping for managing mixed chemical streams—particularly those containing chlorides or potent oxidizers like hydrochloric, sulfuric, or nitric acid—are typical applications. When stainless steels and other alloys fail in applications involving aggressive chemical media, C22’s strong corrosion resistance makes it the perfect choice. It is a preferred material in crucial, corrosion-prone industrial systems due to its long service life and durability.
