Home > Duplex Steel > Duplex Steel Tubing 2205
Vipul Pipes and Tubes is a topmost manufacturer and supplier of Duplex Steel 2205 Tubing in Chennai, India. Our company offers high-strength duplex stainless steel tubing for exceptional strength and corrosion resistance in harsh environments. Duplex 2205 is an alloy of almost equal amounts of austenite and ferrite and possesses excellent resistance to stress corrosion cracking, pitting, and crevice corrosion. Our tubes are suitable for use in oil & gas, chemical processing, marine, and power generation industries. Our Duplex 2205 tubes, made according to international standards, are renowned for their cost-effectiveness, weldability, and ruggedness in essential structural and fluid conveyance applications.
Duplex 2205 contains about 22% Chromium, 5–6.5% Nickel, 3% Molybdenum, and Bal. Iron with Nitrogen and Manganese traces. The dual-phase steel has superior mechanical properties with tensile strength of 620–880 MPa, yield strength of about 450 MPa, and elongation of 25–30%. It inherits the benefits of both ferritic as well as austenitic stainless steels—providing high strength, easy weldability, and better corrosion resistance, especially in chloride-contaminated environments. Duplex 2205 is tough to cryogenic temperatures and is fatigues-resistant, making it an ideal candidate for dynamic loading applications.
| Tube Specifications |
|
|---|---|
| Tube Standard | DIN, JIS, ASTM, EN, GB, AISI, ASME Tube Supplier |
| Tube Schedule | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS |
| Length | Single Random, Double Random, Standard & Cut length |
| Type | Seamless / ERW/ EFW / Welded / Fabricated / CDW / DOM / CEW Tube |
| Tube Value Added Service | Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc. |
| Tube Thickness | 0.3mm – 50 mm |
| Seamless Tube Outer Diameter | 6.00 mm OD up to 250 mm OD, Sizes up to 12” NB |
| EFW Tube size | 5.0 mm – 1219.2 mm |
| Welded Tube size | 5.0 mm – 1219.2 mm |
| wall thickness | 0.020″ –0.220″ (special wall thicknesses available) |
| End | Plain End, Beveled End, Treaded Tube. |
| Specialized in |
|
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Tube Marking | All Tubes are marked as follows: Grade, Standard, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Boiler and Heatexchanger, Oil Tube, Fluid Tube, Gas Tube, |
| Form | Round, Square, Hollow, Rectangular, Hydraulic, Coiled, Straight Tubes, “U” Shape, Pan Cake Coils etc. |
| Material Test Certificates (MTC) |
|
| Finish | Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish,etc |
| Chemical Composition % | ||||
| Cr | Ni | Mo | C | N |
| 22.0-23.0 | 4.50-6.50 | 3.00-3.50 | .030 Max | 0.14-0.20 |
| Mn | Si | P | S | Fe |
| 2.00 Max | 1.00 Max | .030 Max | .020 Max | Balance |
PIPE STANDARD | WERKSTOFF NR. | UNS |
Duplex 2205 Tube | 1.4462 / 1.4462 | S31803 / S32205 |
| Duplex Stainless Steel | 2205 |
| Density | 7.805 |
| Melting Range,℃ | 1450 ℃ |
| Elongation % | 25 min. |
| Tensile Strength (Mpa) | 655 |
| Yield Strngth (Mpa) | 450 |
| Hardness (Brinell) | 293 max |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Duplex Steel Tubing 2205 from Vipul Pipes and Tubes ensures superior quality and durability, offering outstanding corrosion resistance and high strength. Our dedication to delivering exceptional service and reliable products guarantees customer satisfaction across a wide range of industrial applications. With our expertise in Duplex steel solutions, you can trust us to provide a top-tier, customized piping solution that meets your specific requirements.
Vipul Pipes and Tubes, one of the largest suppliers of Duplex Steel Tubing 2205 in the Chennais, India. Offers a wide range of high-quality pipes and tubes designed for various industrial applications. Their extensive inventory and dedication to exceptional service make them a trusted choice for Duplex steel products in the region, delivering reliable solutions to meet diverse project requirements.
Yes, we provide custom sizes for Duplex Steel Tubing 2205 to meet your specific requirements. At Vipul Pipes and Tubes, our team is dedicated to delivering tailored solutions for all your piping and tubing needs. For more information, please contact us at sales@vipulpipesandtubes.co.in.

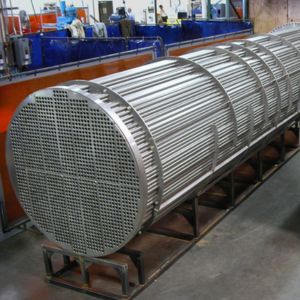

Duplex Steel 2205 Tubes are highly utilized in offshore oil and gas platforms, chemical tanks, heat exchangers, desalination plants, and marine-exposed structural parts. Its resistance to chloride stress corrosion cracking in brine systems, pulp and paper digesters, and chemical process piping makes it the best choice. The tubes are also desirable in refineries, pressure vessels, and marine hardware when high mechanical strength and corrosion resistance are critical. Its superior fatigue strength and weldability enable long-term operation under high-pressure as well as corrosive environments, which makes it a trusted option across various industrial applications.
