Home > Duplex Steel > Duplex Steel Pipes 2205

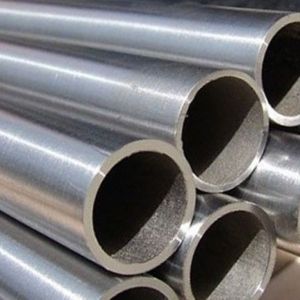

Premium Duplex Steel Pipes 2205, which are known for their exceptional strength and resistance to corrosion, are manufactured and supplied by Vipul Pipes and Tubes, located in Chennai. With a balanced microstructure of ferrite and austenite, Grade 2205 is a popular duplex stainless steel that offers exceptional resistance to pitting, stress corrosion, cracking, and crevice corrosion. These pipes are manufactured in accordance with ASTM A790 and ASME SA790 standards using sophisticated welding and quality control procedures. Duplex 2205 pipes are dependable for demanding structural and process applications in the oil and gas, chemical processing, marine, and desalination industries because they are perfect for harsh environments.
Typical compositions of Duplex Steel Pipes 2205 include 21–23% Chromium, 4.5–6.5% Nickel, 2.5–3.5% Molybdenum, 0.14–0.20% Nitrogen, and the remaining Iron. High tensile strength (~620 MPa), yield strength (~450 MPa), and improved toughness are guaranteed by this composition. The dual-phase microstructure outperforms conventional austenitic grades in terms of resistance to chloride-induced corrosion, including pitting and stress corrosion cracking. With a typical hardness of about 250 HV, duplex 2205 pipes provide good dimensional stability and weldability, making them appropriate for high-temperature and high-pressure applications.
| Pipe Standard | AISI, DIN, EN, GB, JIS, ASTM, ASME |
|---|---|
| Seamless Pipe Outer Diameter | 6.00 MM OD up – 250 MM OD, Sizes up to 12 Inch NB |
| Welded Pipes sizes | 5.0 MM – 1219.2 MM |
| EFW Pipes size | 5.0 MM to 1219.2 MM |
| Pipe Thickness | 0.3MM to 50 MM |
| Size | 3.35 – 101.6 MM OD, 15 – 150 NB Inch |
| Size | 6.35 – 152 MM outer diameter |
| wall thickness | 0.020 inch to 0.220inch |
| Schedule | Schedule 5, 10, 40, 80, 80S, 160, XXS, XS Duplex 2205 Pipe Supplier |
| Finish | Annealedand Pickled, Polished, Mirror finish, Bright and Annealed, MF, NO.1, NO.4, 2B, BA, HL, 8K, etc |

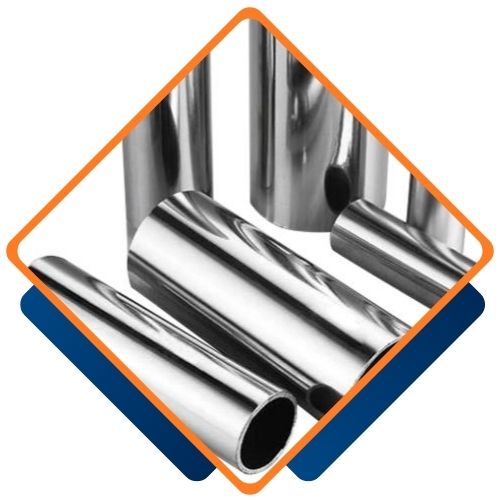

| Form | Straight Pipes, Round, Rectangular, Hydraulic, Square, Coiled, U Shape, Hollow etc. |
| Pipe Length | Single Random, Double Random, Standard & Cut length |
| End | Plain End, Beveled End, Treaded Pipe. |

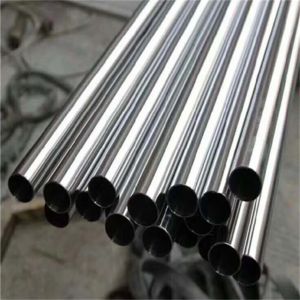

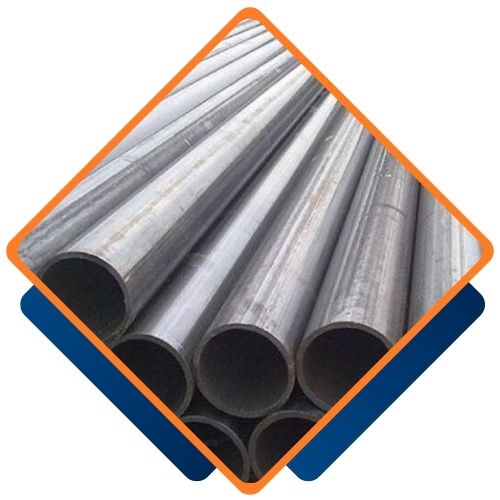

| Tubes Types | Alloy 2205 Seamless, ERW, EFW, Welded, Fabricated, CDW, DOM, CEW Pipes |
| Pipe Marking | All Pipes are marked as follows: Supplier or Manufacturer’s Name, Grade, Standard, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Application | Boiler, Heatexchanger, Oil Tube, Gas Tube and Fluid Tube |
| Carbon | Nitrogen | Phosphorus | Silicon | Manganese | Molybdenum | Iron | Chromium | Sulfur | Nickel |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Density | Melting Point | Yield Strength | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C | Psi – 80000, MPa – 550 | Psi – 116000, MPa – 800 | 15 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Duplex Steel Pipes 2205 from Vipul Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Vipul Pipes and Tubes, one of the largest suppliers of Duplex Steel Pipes 2205 in Chennai, India, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Duplex Steel Pipes 2205 to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.

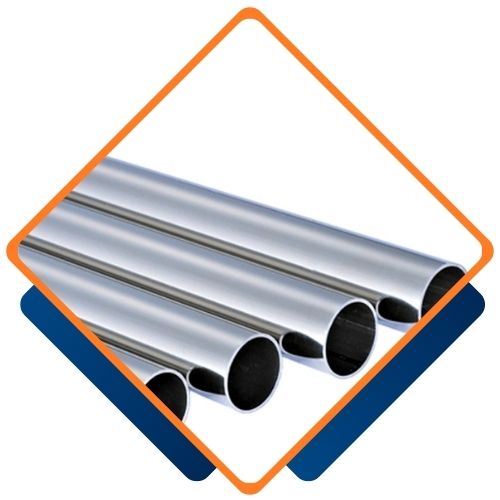

| STANDARD | WERKSTOFF NR. | UNS |
| Duplex 2205 Pipe | 1.4462 / 1.4462 | S31803 / S32205 |
| Pipe Outer Diameter in mm | Pipe Wall Thickness in mm | inches | Schedule | Kg/m |
|---|---|---|---|---|
| 13.72 | 2.24 | 1/4 | 40S | 0.64 |
| 13.72 | 3.02 | 1/4 | 80S | 0.81 |
| 17.15 | 1.65 | 3/8 | 10S | 0.64 |
| 13.72 | 1.65 | 1/4 | 10S | 0.50 |
| 17.15 | 2.31 | 3/8 | 40S | 0.86 |
| 21.34 | 2.11 | 1/2 | 10S | 1.02 |
| 21.34 | 2.77 | 1/2 | 40S | 1.29 |
| 17.15 | 3.20 | 3/8 | 80S | 1.12 |
| 21.34 | 3.73 | 1/2 | 80S | 1.65 |
| 26.67 | 2.11 | 3/4 | 10S | 1.30 |
| 26.67 | 3.91 | 3/4 | 80S | 2.23 |
| 33.40 | 2.77 | 1 | 10S | 2.13 |
| 26.67 | 2.87 | 3/4 | 40S | 1.71 |
| 33.40 | 3.38 | 1 | 40S | 2.54 |
| 33.40 | 4.55 | 1 | 80S | 3.29 |
| 33.40 | 6.352) | 1 | 160 | 4.30 |
| 42.16 | 2.77 | 1¼ | 10S | 2.73 |
| 42.16 | 3.56 | 1¼ | 40S | 3.44 |
| 42.16 | 4.85 | 1¼ | 80S | 4.53 |
| 42.16 | 6.352) | 1¼ | 160 | 5.69 |
| 48.26 | 2.77 | 1½ | 10S | 3.16 |
| 48.26 | 3.68 | 1½ | 40S | 4.11 |
| 48.26 | 5.08 | 1½ | 80S | 5.49 |
| 60.33 | 2.77 | 2 | 10S | 3.99 |
| 60.33 | 3.91 | 2 | 40S | 5.52 |
| 60.33 | 5.54 | 2 | 80S | 7.60 |
| 60.33 | 8.742) | 2 | 160 | 11.29 |
| 73.03 | 3.05 | 2½ | 10S | 5.35 |
| 73.03 | 5.16 | 2½ | 40S | 8.77 |
| 73.03 | 7.01 | 2½ | 80S | 11.59 |
| 88.90 | 3.05 | 3 | 10S | 6.56 |
| 88.90 | 5.49 | 3 | 40S | 11.47 |
| 88.90 | 7.62 | 3 | 80S | 15.51 |
| 88.90 | 11.132) | 3 | 160 | 21.67 |
| 101.60 | 3.05 | 3½ | 10S | 7.53 |
| 101.60 | 5.74 | 3½ | 40S | 13.78 |
| 101.60 | 8.08 | 3½ | 80S | 18.92 |
| 114.30 | 3.05 | 4 | 10S | 8.50 |
| 114.30 | 6.02 | 4 | 40S | 16.32 |
| 114.30 | 8.56 | 4 | 80S | 22.67 |
| 114.30 | 13.492) | 4 | 160 | 34.05 |
| 141.30 | 6.55 | 5 | 40S | 22.10 |
| 141.30 | 9.53 | 5 | 80S | 31.44 |
| 141.30 | 15.882) | 5 | 160 | 49.87 |
| 168.28 | 3.4 | 6 | 10S | 14.04 |
| 168.28 | 7.11 | 6 | 40S | 28.69 |
| 168.28 | 10.97 | 6 | 80S | 43.21 |
| 168.28 | 14.27 | 6 | 120 | 54.75 |
| 168.28 | 18.262) | 6 | 160 | 68.59 |
| 219.08 | 8.18 | 8 | 40S | 43.20 |
| 219.08 | 12.7 | 8 | 80S | 65.63 |
| 219.08 | 18.23 | 8 | 120 | 91.30 |
| 219.08 | 23.012) | 8 | 160 | 112.97 |
Because of their exceptional mechanical strength and resistance to corrosion, Duplex Steel Pipes 2205 are widely used in desalination systems, chemical processing facilities, oil and gas exploration, and marine environments. These pipes are perfect for piping networks, pressure vessels, heat exchangers, and structural frameworks that are subjected to saline water and harsh chemicals. They are a popular option for power generation facilities, offshore platforms, industrial waste treatment facilities, and subsea pipelines due to their durability. Duplex 2205 pipes are crucial parts of demanding industrial applications all over the world because of their longevity, resistance to corrosion, and low maintenance requirements.
