Home > Copper Nickel > Copper Nickel 90/10 Tubing

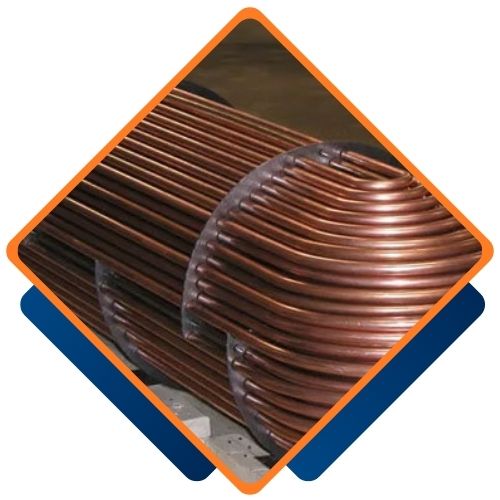

Vipul Pipes and Tubes is a reputable manufacturer and supplier of Copper Nickel 90/10 Tubing from Chennai, India. Known for providing superior tubing solutions, Vipul Pipes provides Cu-Ni 90/10 (UNS C70600) tubing recognized for its superior corrosion resistance in marine and brackish water applications. With improved formability, weldability, and biofouling resistance, Copper Nickel 90/10 tubing is produced according to ASTM B466 and other international standards. Vipul Pipes caters to major industries such as marine engineering, offshore oil and gas, power generation, and heat exchange purposes, providing long life and high performance under stringent conditions.
Copper Nickel 90/10 Tubing consists of 90% copper and 10% nickel, with minor additions of iron (1.4%) and manganese (1%) to provide greater corrosion resistance and mechanical strength. It demonstrates high resistance to seawater corrosion, erosion, and biofouling. Its typical mechanical properties are tensile strength 275–345 MPa, yield strength 105–140 MPa, and elongation to 30%. Its thermal conductivity and stability are high, and it is appropriate to use in heat exchangers and condensers. Its seamless shape provides equal strength and smooth interior flow for fluid transfer systems.
Specification : ASTM B466, B467, B111 / ASME SB466, SB467, SB111
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Wall Thickness : Between 0.15mm and 1.50 mm
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Product Property | US Customary |
|---|---|
| Coefficient of Thermal Expansion | 9.5 10−6Per °F (68-572 F) |
| Density | 0.323 lb/in3 at 68 F |
| Electrical Conductivity | 9 %IACS @ 68 F |
| Electrical Resistivity | 115.0 ohms-cmil/ft @ 68 F |
| Melting Point – Liquidus | 2100 F |
| Melting Point – Solidus | 2010 F |
| Modulas of Elasticity in Tension | 18000 ksi |
| Modulus of Rigidity | 6800 ksi |
| Specific Gravity | 8.94 |
| Specific Heat Capacity | 0.09 Btu/lb/°F at 68 F |
| Thermal Conductivity | 26.0 BTU in/hr.ft2.°F @ 68 F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel 90/10 Tubing from Vipul Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel 90/10 Tubing from Vipul Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Outer Diameter) Sizes | Wall Thk. |
|---|---|
| 3/16″, 1″, 1 5/8″, 3/8″, 16″, 7/8″, 5/16″, 1 1/2″, 7/16″, 1/4″, 2″, 5/8″, 1/2″, 3/4″, 1/8″, 1 1/4″, 2 1/4″ | 0.035 |
| 1/8″ , 3/16″ | 0.016 |
| 1/16″, 1/8″, 3/16″ | 0.010 |
| 1/16″, 1/8″, 1/4″ 3/16″, 3/8″, 5/16″ | 0.020 |
| 1/8″ | 0.012 |
| 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/2″, 1 1/4″, 1 5/8″, 1 7/8″, 2″, 2 1/2″, 3″ | 0.083 |
| 1″ | .134 |
| 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/2″, 1 1/4″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ | 0.065 |
| 3 1/2″ | .375 |
| 1/8″, 1/4″ 3/16″, 3/8″, 5/16″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ | 0.028 |
| 3/4″, 1 1/4″, 1″, 1 1/2″, 2″, 3″, 3 1/4″ | .125 |
| 1/2″, 5/8″, 1 1/4″, 1″, 1 1/2″, 2″ | 0.095 |
| 1/2″, 3/4″, 1 1/4″, 1″, 1 1/2″, 2″ | .109 |
| 3″ | .250 |
| 1/2″, 5/8″, 3/4″, 7/8″, 1 1/4″, 1″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ | .120 |
| 1/4″, 3/16″, 3/8″, 5/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/2″, 1 1/4″, 1 5/8″, 2″, 2 1/4″ |
Yes, we offer custom sizes for Copper Nickel 90/10 Tubing to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.
Copper Nickel 90/10 Tubing is widely employed in marine and offshore applications for seawater cooling networks, bilge and ballast networks, and fire networks because of its superior anticorrosion and macrofouling resistance. It is a material of choice in heat exchangers, condensers, and evaporators in power and desalination plants. In the oil and gas sector, it is employed in hydraulic lines and subsea piping. The tubing also has use in HVAC applications, shipbuilding, and chemical processing equipment in which high durability, thermal stability, and fabricability are a requirement for long-term, dependable service.
