Carbon Steel IS 3589 Pipes

Home > Carbon Steel > Carbon Steel IS 3589 Pipes

Carbon Steel IS 3589 Pipes Manufacturer, Supplier and Exporter in Chennai, India

Vipul Pipes and Tubes, Chennai, India-based, is a reliable manufacturer and supplier of Carbon Steel IS 3589 Pipes that cater to a variety of industries with strong and affordable piping products. These pipes are produced under the Indian Standard IS 3589, which is specific to steel pipes for water, gas, and sewage applications. Reckoned for strength, corrosion resistance, and durability, Vipul Pipes maintains quality through rigorous testing and compliance with national standards. Their IS 3589 pipes are best suited for structural and fluid transmission purposes and are a go-to option in infrastructure, construction, and utility industries.

IS 3589 Steel Pipe Supplier in Chennai, IS 3589 Carbon Steel Pipes Exporter in India, IS 3589 Pipes Sizes in mm, IS 3589 CS Pipes Manufacturer in Chennai, Carbon Steel IS 3589 Pipes Price List in Chennai, CS IS 3589 Pipes Distributor in Chennai, IS 3589 Carbon Steel Pipes in India, IS 3589 CS Pipes Supplier in Chennai, CS IS 3589 Pipes Distributor in India

Carbon Steel IS 3589 Pipes are mostly produced from controlled mild steel composition with carbon content up to 0.20%, manganese, sulfur, and phosphorus. These pipes have a tensile strength of 410 MPa (min) and yield strength of 250 MPa (min). These pipes have high ductility, weld ability, and toughness, and they can be formed, bent, and welded easily. IS 3589 pipes are manufactured in ERW (Electric Resistance Welded) condition and come in several thicknesses and diameters. These balanced chemical makeup and mechanical properties provide long-term performance in pressure and structural usage.

Carbon Steel IS 3589 Pipes Specification

Size in MM	15 Nominal Bore to 150 Nominal Bore
Dimension & Tolerance	Dimensions IS: 3589 = 2004 / Equivalent to BS = 1985/ 1387
Specifications	IS 3589
Surface Finish	Black
Pipe Marking	All Pipe are marked as follows: Supplier or Manufacturer’s Name, Standard, Grade, OD, Thickness, Length, Heat Number
Features	High Strength, Corrosion Resistant, Deformability & High Toughness
Length	As per Client’s requirement

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

IS 3589 Carbon Steel Pipes Exporter in India, Carbon Steel IS 3589 Pipes Price List in Chennai, IS 3589 Pipes Supplier in India, Carbon Steel IS 3589 Pipes Exporter in Chennai, IS 3589 Carbon Steel Pipes Exporter in Chennai, IS 3589 CS Pipes Size Chart, IS 3589 Carbon Steel Pipes Price in India, IS 3589 Pipes Weight Chart, IS 3589 CS Pipes Thickness, IS 3589 Carbon Steel Pipes Supplier in Chennai, IS 3589 Pipes Stockist in India

Why Choose Carbon Steel IS 3589 Pipes from Vipul Pipes and Tubes?

Choosing Carbon Steel IS 3589 Pipes from Vipul Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Carbon Steel IS 3589 Pipes Sizes

Nominal Bore	Nominal Bore	Outer Diameter	Light		Medium		Heavy
Nominal Bore	Nominal Bore	Outer Diameter	Thickness	Weight	Thickness	Weight	Thickness	Weight
MM	IN	MM	MM	Kg/Meter	MM	Kg/Meter	MM	Kg/Meter
6	1/8″	10.32	1.80	0.361	2.00	0.407	2.65	0.493
10	3/8″	17.10	1.80	0.674	2.35	0.852	2.90	1.020
15	1/2″	21.43	2.00	0.952	2.65	1.122	3.25	1.450
20	3/4″	27.20	2.35	1.410	2.65	1.580	3.25	1.900
8	1/4″	13.49	1.80	0.517	2.35	0.650	2.90	0.769
25	1″	33.80	2.65	2.010	3.25	2.440	4.05	2.970
40	11/2″	48.40	2.90	3.250	3.25	3.610	4.05	4.430
50	2″	60.30	2.90	4.110	3.65	5.100	4.47	6.170
65	21/2′	76.20	3.25	5.840	3.65	6.610	4.47	7.900
80	3″	88.90	3.25	6.810	4.05	8.470	4.85	10.100
100	4″	114.30	3.65	9.890	4.50	12.100	5.40	14.400
125	5″	139.70	…..	……	4.85	16.200	5.40	17.800
150	6″	165.10	……	…….	4.85	19.200	5.40	21.200
Wall Thickness	7 Inch Nominal Bore 193.7 Kg/Meter	8 Inch Nominal Bore 219.1 Kg/Meter	10 Inch Nominal Bore 273 Kg/Meter	12 Inch Nominal Bore 323.7 Kg/Meter	14 Inch Nominal Bore 355.6 Kg/Meter	16 Inch Nominal Bore 406.4 Kg/Meter	18 Inch Nominal Bore 454 Kg/Meter	20 Inch Nominal Bore 508 Kg/Meter
9.53	……	51.50	60.24	73.75	81.21	93.13	105.00	117.00
4.85	22.59	25.62	32.07	38.13	……	……..	…….	…….
5.20	24.17	27.43	34.34	40.84	……	……..	……..	……..
5.60	26.00	29.28	36.93	43.93	48.11	……..	………	……….
7.01	32.27	36.76	46.43	55.45	61.82	69.04	……	……
7.94	…..	41.00	50.95	61.85	67.98	77.92	87.80	…….
6.35	29.34	33.28	41.73	49.67	54.43	62.35	70.50	78.50
6.00	27.88	31.53	39.50	47.02	51.49	61.00	69.00	……..
8.18	……	42.56	53.42	65.12	……	……	……	……
12.70	……	…..	……	……	107.28	123.30	139.00	155.00

Dimensions of IS 3589 Pipes

Nominal Bore		Outside Diameter		Light Thickness Weight		Medium Thickness Weight		Heavy Thickness Weight
Inch	MM	Inch	MM	MM	kg/Meter	MM	kg/Meter	MM	kg/Meter
1/8	3	0.406	10.32	1.80	0.361	2.00		2.65	0.493
1/4	6	0.532	13.49	1.80	0.517	2.35	0.407	2.90	0.769
3/8	10	0.872	17.10	1.80	0.674	2.35	0.852	2.90	1.02
3/4	20	1.094	27.20	2.35	1.410	2.65	1.580	3.25	1.90
1.1/2	40	1.906	48.40	2.90	3.250	3.25	3.610	4.05	4.43
1	25	1.312	33.80	2.65	2.010	3.25	2.440	4.05	2.97
1.1/4	32	1.656	42.90	2.65	2.580	3.25	3.140	4.05	3.84
1/2	15	0.844	21.43	2.00	0.952	2.65	1.122	3.25	1.45
2	50	2.375	60.30	2.90	4.110	3.65	5.100	4.47	6.17
2.1/2	65	3.004	76.20	3.25	5.840	3.65	6.610	4.47	7.90
6	150	6.500	165.10	–	–	4.85	19.20	5.40	21.2
3	80	3.500	88.90	3.25	6.810	4.05	8.470	4.85	10.1
4	100	4.500	114.30	3.65	9.890	4.50	12.10	5.40	14.4
5	125	5.500	139.70	–	–	4.85	16.20	5.40	17.8

Largest Carbon Steel IS 3589 Pipes Supplier in Chennai, India

Vipul Pipes and Tubes is one of the largest Carbon Steel IS 3589 Pipes suppliers in Chennai, India, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.

IS 3589 CS Pipes Supplier in Chennai, Carbon Steel IS 3589 Pipes Exporter in India, IS 3589 CS Pipes Manufacturer in Chennai, IS 3589 Carbon Steel Pipes Price List in Chennai, CS IS 3589 Pipes Distributor in Chennai, IS 3589 CS Pipes in India, IS 3589 CS Pipes Supplier in Chennai, Carbon Steel IS 3589 Pipes Distributor in India, IS 3589 Carbon Steel Pipes Sizes in mm

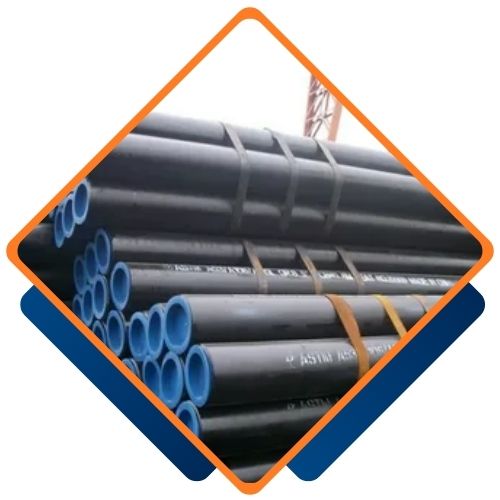

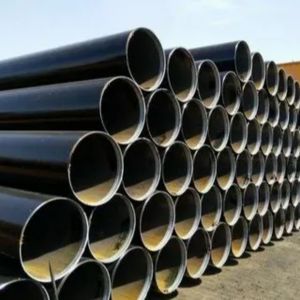

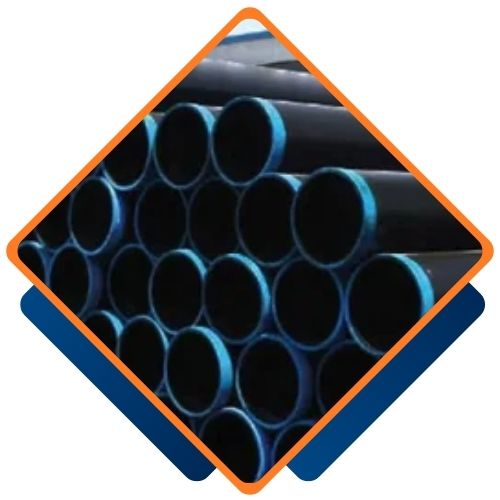

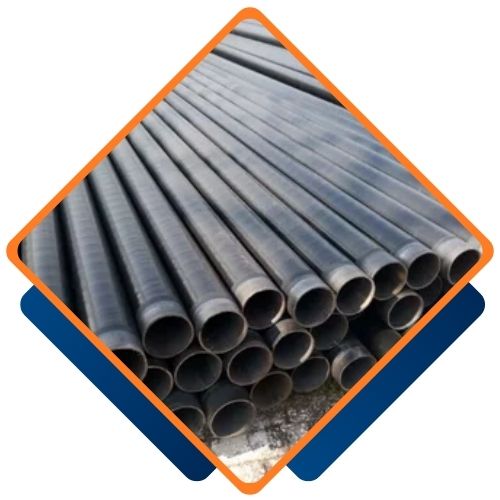

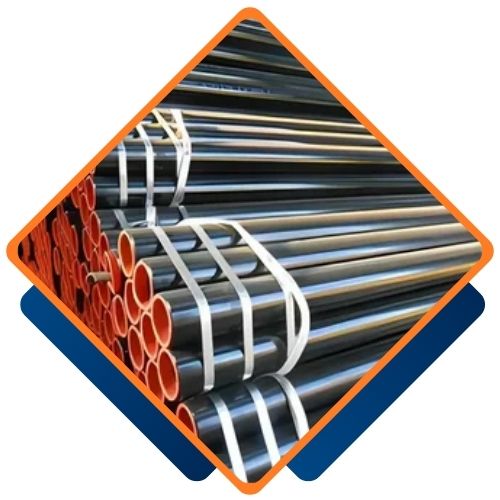

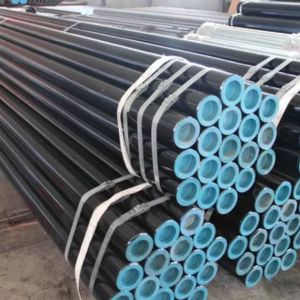

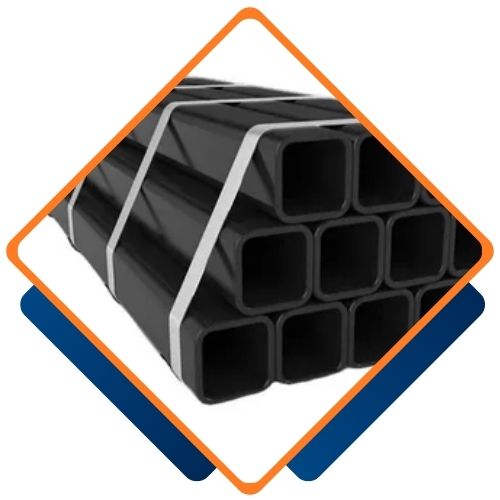

Types of Carbon Steel IS 3589 Pipes

Are Custom Sizes Available for Carbon Steel IS 3589 Pipes

Yes, we offer custom sizes for Carbon Steel IS 3589 Pipes to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.

IS 3589 CS Pipes Exporter in India, Carbon Steel IS 3589 Pipes Price List in Chennai, IS 3589 Pipes Supplier in India, CS IS 3589 Pipes Exporter in Chennai, IS 3589 Pipes Exporter in Chennai, IS 3589 Carbon Steel Pipes Size Chart, IS 3589 Pipes Price in India, CS IS 3589 Pipes Weight Chart, IS 3589 Carbon Steel Pipes Thickness, IS 3589 CS Pipes Supplier in Chennai, IS 3589 Pipes Stockist in India

Carbon Steel IS 3589 Pipes are widely used in water supply networks, sewage lines, and gas distribution networks because of the strength and resistance to internal pressure. They are also utilized in building and structural use like columns, scaffolding, and bridges. The pipes are highly used in irrigation schemes, power generation plants, and transportation of industrial fluid. They are weldable and have a smooth surface, so they can be used for fabrication, engineering purposes, and infrastructure projects. Due to their affordability and dependability, IS 3589 pipes are frequently used for underground and overhead pipelines in city and rural projects.
