Carbon Steel A672 GR CC 60 Pipes

Home > Carbon Steel > Carbon Steel A672 GR CC 60 Pipes

Carbon Steel A672 GR CC 60 Pipes Manufacturer, Supplier and Exporter in Chennai, India

Vipul Pipes and Tubes, a renowned Chennai-based manufacturer and supplier of top-notch Carbon Steel A672 Grade CC60 Pipes designed for high-pressure operation in moderate temperatures. These pipes are produced from fusion-welded pressure vessel quality plates in compliance with ASTM A672 standards. Structurally strong and weldable, A672 CC60 pipes are the preferred choice for critical applications in power plants, petrochemical divisions, and oil & gas industries. Vipul provides accurate manufacturing, strenuous testing, and timely shipping, becoming a reliable supplier for reliable and high-performing piping solutions within India and abroad.

Carbon Steel A672 GR CC60 Pipes Supplier in Chennai, Carbon Steel A672 GR CC60 Pipes Exporter in India, ASTM A672 GR CC60 Pipes Sizes in mm, Carbon Steel A672 GR CC60 Pipes Manufacturer in Chennai, Carbon Steel A672 GR CC60 Pipe Price List in Chennai, ASTM A672 GR CC60 Pipes Distributor in Chennai, Carbon Steel A672 GR CC60 Pipes in India, Carbon Steel A672 GR CC60 Pipes Supplier in Chennai, Carbon Steel A672 GR CC60 Pipes Distributor in India

ASTM A672 GR CC60 Carbon Steel Pipes are fabricated from ASTM A516 Grade 60 plates, which are composed of carbon (0.18–0.27%), manganese (0.55–0.98%), phosphorus (max 0.035%), sulfur (max 0.035%), and silicon (0.13–0.45%). These pipes provide a minimum yield point of 240 MPa and minimum tensile strength of 415 MPa, along with good notch toughness, ductility, and weldability. Additional testing like ultrasonic testing and impact testing adds to their reliability in pressure service and meets the customers’ requirements.

Carbon Steel A672 GR CC 60 Pipes Specification

Specification	ASTM A672 /ASME SA672
Outer Diameter Size	16″ NB To 100″ NB (Nominal Bore Size)
Packaging	Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Material Test Certificate	Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC
Class Designation	CLASS 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 40, 41, 42
Wall Thickness	Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness
Length	5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.
Ends	Plain Ends / Beveled Ends / Coupling
Delivery Conditions	As Rolled, Normalizing Rolled, Thermomechanical Rolled / Formed, Normalizing Formed, Normalized and Tempered / Quenched and Tempered – BR / N / Q /T
Other Testing	NACE MR0175, NACE TM0177, NACE TM0284, CHARPY V-NOTCH TEST, RADIOGRAPHIC EXAMINATION, XRAY, ULTRASONIC EXAMINATION, LIQUID PENETRANT, MAGNETIC PARTICLE, HIC TEST, SSC TEST, SWC, H2 SERVICE, IBR, PWHT etc.
Type	EFW (ELECTRIC FUSION WELDED PIPES)
Value Added Services	Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Galavanizing / Heat Treatment
Coating	Epoxy Coating / Colour Paint Coating / 3LPE Coating.
Shipment & Transportation	By Road – Truck / Train, By Sea – Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air – Freighter Civil Passenger and Cargo Planes
Standards	ASTM A672 / A672 C55 LSAW STEEL PIPES

Carbon Steel A672 GR CC 60 Pipes Chemical Composition

A672 Grades	Chemical composition
A672 Grades	C	Si	Mn	P	S	Ti

CC60/ C60	0.21		0.21

Carbon Steel A672 GR CC 60 Pipes Mechanical Properties

A672 Grades	Yield Strength (N/mm2)	Tensile Properties (N/mm2)	Elongation (%)	Welding point tensile strength (N/mm2)
CC60/ C60	220	415~550	25	415~550

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ASTM A672 GR CC60 Pipe Exporter in India, Carbon Steel A672 GR CC60 Pipes Price List in Chennai, Carbon Steel A672 GR CC60 Pipes Supplier in India, Carbon Steel A672 GR CC60 Pipes Exporter in Chennai, Carbon Steel A672 GR CC60 Pipes Exporter in Chennai, ASTM A672 GR CC60 Pipes Size Chart, Carbon Steel A672 GR CC60 Pipes Price in India, Carbon Steel A672 GR CC60 Pipe Weight Chart, ASTM A672 GR CC60 Pipes Thickness, Carbon Steel A672 GR CC60 Pipes Supplier in Chennai, Carbon Steel A672 GR CC60 Pipe Stockist in India

Why Choose Carbon Steel A672 GR CC 60 Pipes From Vipul Pipes and Tubes?

Choosing Carbon Steel A672 GR CC 60 Pipes from Vipul Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Carbon Steel A672 GR CC 60 Pipes Size Chart

NB	Size	OD	40S	5S	10S	S10	S20	S40	S60	XS/80S	S80	S100	S120	S140	S160	XXS
NB	Size	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
	1/8”	10.29			1.2			1.73			2.41
	1/4”	13.72			1.7			2.24			3.02
	3/8”	17.15			1.7			2.31			3.2
15	1/2”	21.34	2.8	1.7	2.1			2.77		3.73	3.73				4.78	7.47
20	3/4”	26.67	2.9	1.7	2.1			2.87		3.91	3.91				5.56	7.82
25	1”	33.4	3.4	1.7	2.8			3.38		4.55	4.55				6.35	9.09
32	1 1/4”	42.16	3.6	1.7	2.8			3.56		4.85	4.85				6.35	9.7
40	1 1/2”	48.26	3.7	1.7	2.8			3.68		5.08	5.08				7.14	10.2
50	2”	60.33	3.9	1.7	2.8			3.91		5.54	5.54				9.74	11.1
65	2 1/2”	73.03	5.2	2.1	3.1			5.16		7.01	7.01				9.53	14
80	3”	88.9	5.5	2.1	3.1			5.49		7.62	7.62				11.1	15.2
90	3 1/2”	101.6	5.7	2.1	3.1			5.74		8.08	8.08
100	4”	114.3	6	2.1	3.1			6.02		8.56	8.56		11.1		13.5	17.1
125	5”	141.3	6.6	2.8	3.4			6.55		9.53	9.53		12.7		15.9	19.1
150	6”	168.3	7.1	2.8	3.4			7.11		10.97	11		14.3		18.3	22
200	8”	219.1	8.2	2.8	3.8		6.4	8.18	10.3	12.7	12.7	15.1	19.3	20.6	23	22.2
250	10”	273.1	9.3	3.4	4.2		6.4	9.27	12.7	12.7	15.1	19.3	21.4	25.4	28.6	25.4
300	12”	323.9	9.5	4	4.6		6.4	10.3	14.3	12.7	17.5	21.4	25.4	28.6	33.3	25.4
350	14”	355.6	9.5	4	4.8	6.4	7.9	11.1	15.1	12.7	19.1	23.8	27.8	31.8	35.7
400	16”	406.4	9.5	4.2	4.8	6.4	7.9	12.7	16.7	12.7	21.4	26.2	31	36.5	40.5
450	18”	457.2	9.5	4.2	4.8	6.4	7.9	14.3	19.1	12.7	23.8	29.4	34.9	39.7	45.2
500	20”	508	9.5	4.8	5.5	6.4	9.5	15.1	20.6	12.7	26.2	32.5	38.1	44.5	50
550	22”	558.8	9.5	4.8	5.5	6.4	9.5		22.2	12.7	28.6	34.9	41.3	47.6	54
600	24”	609.6	9.5	5.5	6.4	6.4	9.5	17.5	24.6	12.7	31	38.9	46	52.4	59.5
650	26”	660.4	9.5			7.9	13			12.7
700	28”	711.2	9.5			7.9	13			12.7
750	30”	762	9.5	6.4	7.9	7.9	13			12.7
800	32”	812.8	9.5			7.9	13	17.5		12.7
850	34”	863.6	9.5			7.9	13	17.5		12.7
900	36”	914.4	9.5			7.9	13	19.1		12.7

Carbon Steel A672 GR CC 60 Pipes Pipes Material Equivalent

ASTM Grade	Material	JIS/JPI
C60	A516 Gr 60	JPI-SLA24B (1)

Largest Carbon Steel A672 GR CC 60 Pipes Supplier in Chennai, India

Vipul Pipes and Tubes is one of the largest Carbon Steel A672 GR CC 60 Pipes suppliers in Chennai, India, providing a comprehensive range of high-quality pipes tailored for various industries, ensuring reliable delivery and exceptional service to meet diverse project needs.

Carbon Steel A672 GR CC60 Pipes Exporter in India, Carbon Steel A672 GR CC60 Pipes Price List in Chennai, ASTM A672 GR CC60 Pipes Supplier in India, Carbon Steel A672 GR CC60 Pipes Exporter in Chennai, Carbon Steel A672 GR CC60 Pipes Exporter in Chennai, Carbon Steel A672 GR CC60 Pipes Size Chart, Carbon Steel A672 GR CC60 Pipes Price in India, Carbon Steel A672 GR CC60 Pipes Weight Chart, Carbon Steel A672 GR CC60 Pipes Thickness, ASTM A672 GR CC60 Pipes Supplier in Chennai, Carbon Steel A672 GR CC60 Pipes Stockist in India

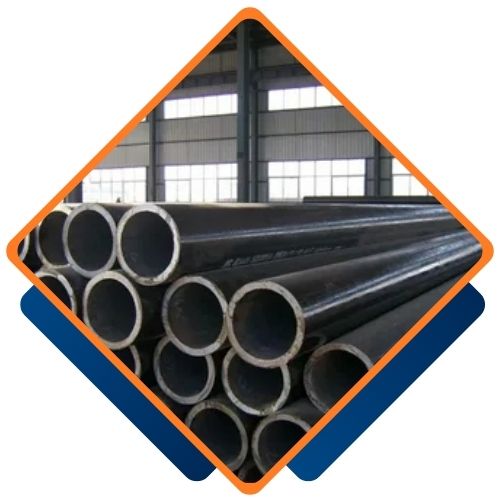

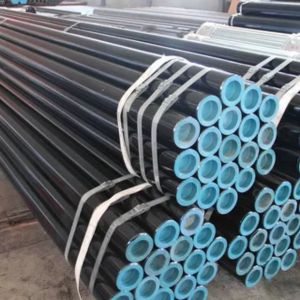

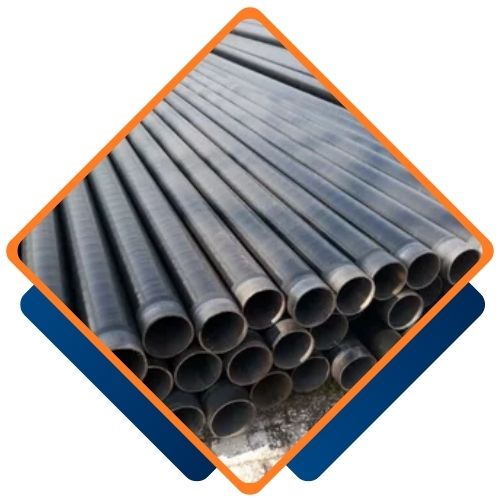

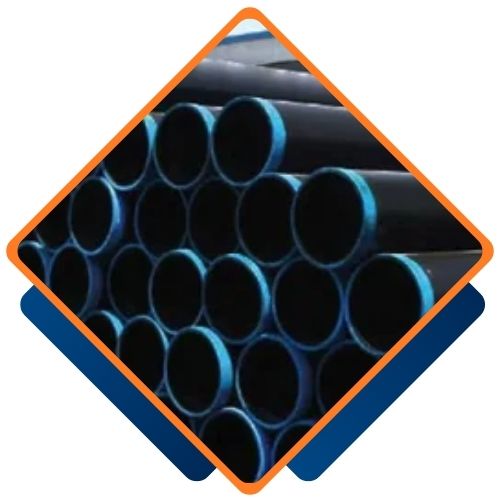

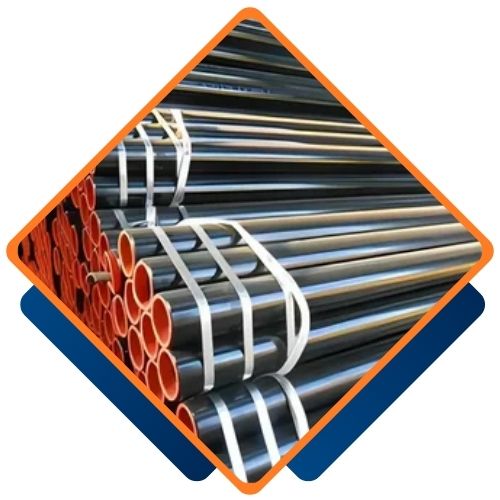

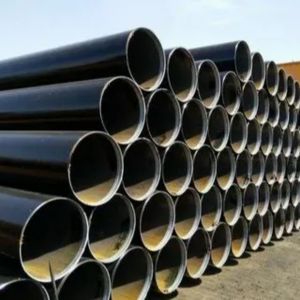

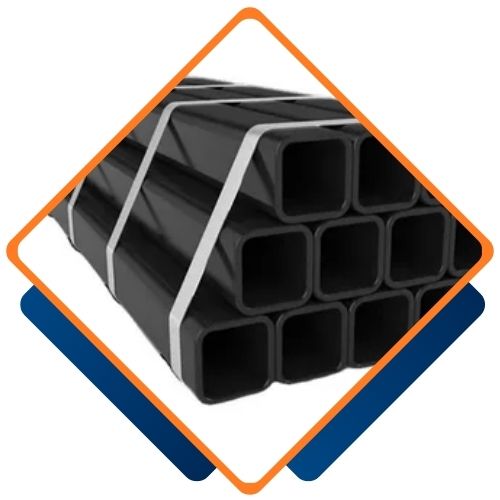

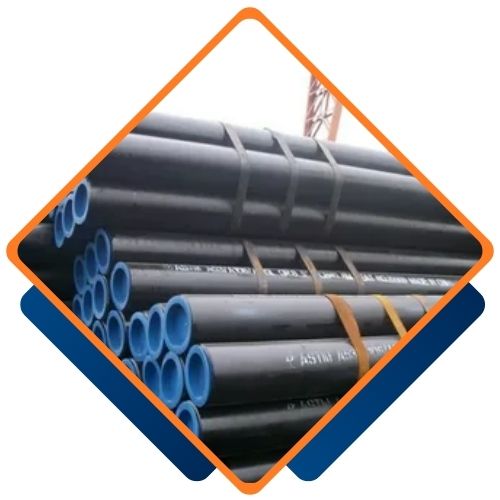

Types of Carbon Steel A672 GR CC 60 Pipes

Are Custom Sizes Available for Carbon Steel A672 GR CC 60 Pipes?

Yes, we offer custom sizes for Carbon Steel A672 GR CC 60 Pipes to meet your specific requirements. Our team at Vipul Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@vipulpipesandtubes.co.in.

Carbon Steel A672 GR CC60 Pipes Supplier in Chennai, ASTM A672 GR CC60 Pipes Exporter in India, CS A672 GR CC60 Pipes Manufacturer in Chennai, Carbon Steel A672 GR CC60 Pipes Price List in Chennai, Carbon Steel A672 GR CC60 Pipes Distributor in Chennai, Carbon Steel A672 GR CC60 Pipes in India, ASTM A672 GR CC60 Pipes Supplier in Chennai, Carbon Steel A672 GR CC60 Pipes Distributor in India, Carbon Steel A672 GR CC60 Pipe Sizes in mm

Carbon Steel A672 GR CC60 Pipes are used extensively in high-pressure steam and water piping, boiler and condenser tubes, and power generation equipment. The pipes can be utilized in refineries, chemical processing plants, and thermal power plants where moderate pressure and temperature management is required. They can also be used in heat exchangers, condensers, and oil & gas pipeline transmission lines. Their thermal stress and pressure cycling resistance makes them well-suited for critical pressure service applications. Vipul’s A672 CC60 pipes offer sustained performance, structural integrity, and international standards compliance, and therefore reliability in rigorous industrial applications.
